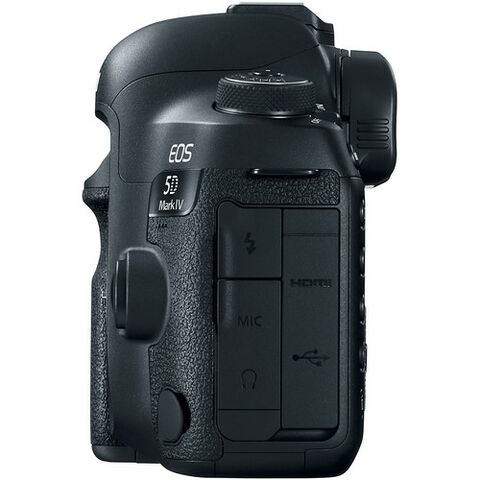

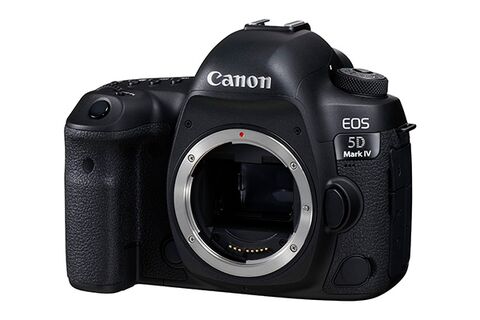

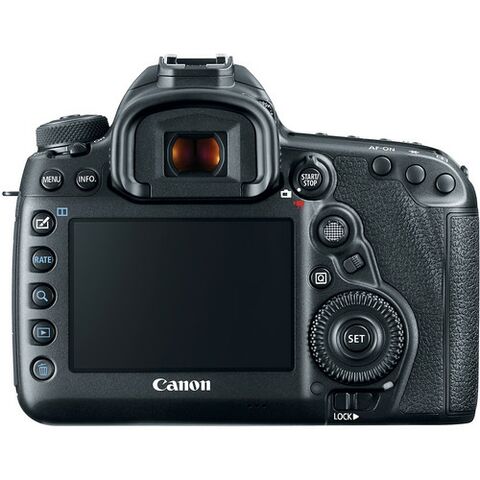

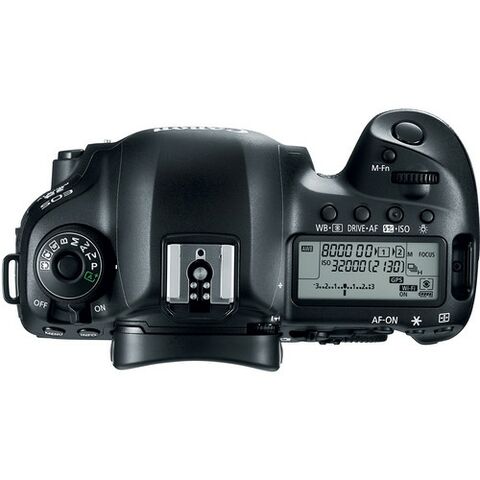

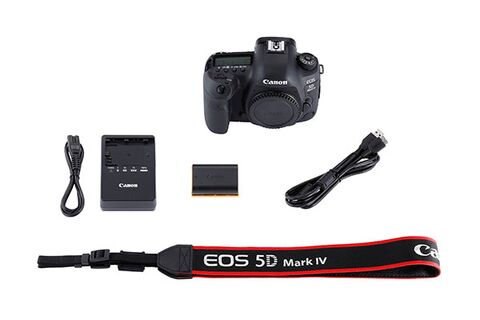

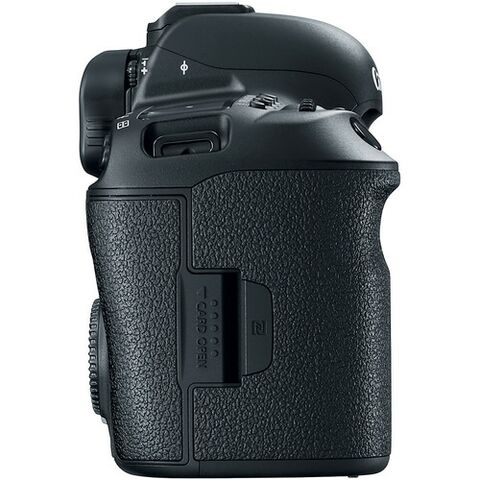

Canon EOS 5D MKIV Body

36 x 24 mm CMOS

Approx. 30.4 megapixels

Approx. 31.7 megapixels

3:2

Built-in/Fixed

EOS integrated cleaning system

Primary Colour

DIGIC 6+

EF (excludes EF-S / EF-M lenses)

Equivalent to 1.0x the focal length of the lens

TTL-secondary image-forming phase-difference detection system with dedicated AF sensor

61 Point / max of 41 cross-type AF points inc 5 dual cross type at f/2.8 and 61 points / 21 cross-type AF points at f/8¹
The number of cross-type AF points will differ depending on the lens.

EV -3 - 18 (at 23°C & ISO100)

One Shot
AI Focus
AI Servo AF

Automatic selection: All 61 point AF (based on EOS iTR AF setting)
Manual selection: Single point AF (selectable points 61, 15, 9 or cross type only points selectable)
Manual selection: Single point Spot AF
Manual selection: AF point Expansion 4 points (up, down, left, right)
Manual selection: AF point Expansion surrounding 8 points
Manual selection: Zone AF (all AF points divided into 9 focusing zones)
Manual selection: Large Zone AF (all AF points divided into 3 focusing zones)
AF points can be selected separately for vertical and horizontal shooting

transparent LCD in viewfinder and shown on Quick Control screen

Locked when shutter button is pressed half way or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo

Emitted by an optional dedicated Speedlite

Selected on lens

Manual: Enter adjustment +/- 20 steps (wide and tele setting for zoom lenses)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number

Approx. 150,000-pixel RGB+IR metering sensor, 252-zone metering. EOS Intelligent Subject Analysis system
(1) Evaluative metering (linked to All AF point)
(2) Partial metering (approx. 6.1% of viewfinder at centre)
(3) Spot metering: Center spot metering (approx. 1.3% viewfinder at centre)
AF point-linked spot metering not provided
(4) Centre weighted average metering

EV 0 - 20 (at 23°C, ISO100, with evaluative metering)

Auto: In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved
Manual: By AE lock button in P, Av, Tv and M modes

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

+/-3 EV in 1/3 or 1/2 stop increments

Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease

Auto 100-32000 (in 1/3-stop or whole stop increments)
ISO can be expanded to L:50, H1: 51200, H2: 102400,²

Electronically-controlled focal-plane shutter

30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Soft touch electromagnetic release

Auto white balance with the imaging sensor

AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9

Yes, 1 setting can be registered

'+/-3 levels in single level increments
3, 2, 5 or 7 bracketed images per shutter release
Selectable Blue/Amber bias or Magenta/ Green bias

Pentaprism

Approx. 100%

Approx. 0.71x³

Approx. 21mm (from eyepiece lens centre)

-3 to +1 m^-1 (dioptre)

Fixed, with information Transparent LCD overlay

Quick-return half mirror

AF information: Single/Spot AF points, AF Frame, AF status, Focus indicator, AF mode, AF point selection, AF point registration
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, flash metering, spot metering circle, exposure warning, AEB, metering mode, shooting mode
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light
Image information:  Card information, maximum burst (2 digit display), Highlight tone priority (D+), JPEG/RAW indicator, Dual Pixel RAW,  Digital Lens Optimizer.
Composition information: Grid, Electronic level
Other information: Battery check, Warning symbol, Flicker Detection, drive mode, white balance

Yes, with Depth of Field preview button

On strap

8.10cm (3.2") Clear View LCD II, approx. 1620K dots

Approx. 100%

Approx 170° vertically and horizontally

Anti-reflection and Anti-smudge. Reinforced glass incorporated

Manual: Adjustable to one of seven levels
Color Tone Adjument: 4 settings

Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in Live View and Movies, touch shutter is possible in Live View still photo shooting.

(1) Quick Control Screen
(2) Camera settings
(3) Dual Axis Electronic Level
(4) Custom Quick Control Screen

E-TTL II Auto Flash, Metered Manual

1/200sec

+/- 3EV in 1/3 increments with EX series Speedlites

Yes, with compatible External Flash

Yes

Yes

Yes / Yes

E-TTL II with EX series Speedlites, wireless multi-flash support

via camera menu screen

Scene Intelligent Auto, Program AE , Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb and Custom (x3)

Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

sRGB and Adobe RGB

Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Lens optical correction⁴:
- Peripheral illumination correction, Chromatic aberration correction (during/after still photo shooting, during Video only)
- Distortion correction, Diffraction correction, Digital Lens Optimizer (during/after still photo shooting)
Resize to M, S1, S2 or S3⁴
Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
- 45 cropping sizes selectable, from 11% to 95% (diagonal)
- Switch between vertical and horizontal cropping orientation
- Cropping frame can be moved using touch screen operation
RAW image processing⁴
Multiple exposure

Single, Continuous High, Continuous Low, Silent Single, Silent Continuous, Self timer (2s+remote, 10s+remote)

Max. Approx. 7fps. with full AF / AE tracking, speed maintained for up to unlimited number of JPEGs or 21 RAW images^7 7 7
Max. 4.3fps in Live View mode with AF Tracking

Built-in, number of shots selectable from 1-99 or unlimited (Selectable interval time - 1sec to 99hr 59mins 59sec). Bulb timer possible (Selectable  time - 1sec to 99hr 59mins 59sec)

Electronic viewfinder with image sensor

Approx. 100% (horizontally and vertically)

29.97 fps (may increase when AF is performed)

Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF (Face Detection and Tracking AF, FlexiZone - Single,  FlexiZone - Multi), available with all EF lenses and Touch shutter

Real-time evaluative metering with image sensor (315-zone)
Partial metering (approx. 6.3% of Live View screen)
Spot metering (approx. 2.7% of Live View screen)
Center-weighted average metering
Active metering timer can be changed

4 levels available through INFO. button: No information, Basic shooting information, Advanced shooting information and Advanced shooting information with Histogram
Multiple Exposure status also available in Multiple Exposure mode

JPEG: 3 compression options
RAW: RAW, M-RAW, S-RAW and Dual Pixel RAW (14bit, Canon original RAW 2nd edition)
Complies with Exif 2.30 and Design rule for Camera File system 2.0
Complies with Digital Print Order Format [DPOF] Version 1.1

Yes, any combination of RAW + JPEG possible, separate formats to separate cards possible including Dual Pixel RAW +JPEG

JPEG:
3:2 ratio (L) 6720x4480, (M1) 4464x2976, (S1) 3360x2240 , (S2) 1696x1280 , (S3) 640x480
4:3 ratio (L) 5952x4480, (M1) 3968x2976, (S1) 2976x2240 , (S2) 1920x1280 , (S3) 720x480
16:9 ratio (L) 6720x3776, (M1) 4464x2512, (S1) 3360x1888 , (S2) 1920x1080 , (S3) 720x408
1:1 ratio (L) 4480x4480, (M1) 2976x2976, (S1) 2240x2240 , (S2) 1280x1280 , (S3) 480x480
RAW:
(RAW) 6720x4480, (M-RAW) 5040x3360, (S-RAW) 3360x2240

New folders can be manually created and selected

(1) Consecutive numbering
(2) Auto reset
(3) Manual reset

MOV Video: 4K  (17:9) 4096 x 2160 - Motion JPEG (internal recording only)¹⁰, Full HD, HD - MPEG4 AVC / H.264 variable (average) bit rate, Audio: Linear PCM
MP4 Video: Full HD (16:9) 1920 x 1080 - MPEG4 AVC/H.264, Audio: AAC

4K (17:9) 4096 x 2160 (29.97, 25, 24, 23.98 fps) Motion JPEG
Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
Full HD (16:9) 1920 x 1080 HDR ( 29.97, 25 fps)  inter frame
Full HD (16:9) 1920 x 1080 (29.97, 25) lite inter frame
HD (16:9) 1280 x 720 (119.9, 100 fps) intra frame

4K - YCbCr4:2:2 (8 bit)
Full HD/ HD - YCbCr4:2:0 (8 bit)

4K and Full HD - Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT CF  card

MOV Video: HD - 1280 x 720 at 100fps or 119.9fps
Recorded as 1/4-speed slow motion movie
Single scene maximum recording up to 7min 29sec.

8.8 megapixel JPEG still image frame grab from 4K movie possible

MOV:
4K (29.97p/25.00p/24.00p/23.98p): Approx. 500 Mbps
Full HD (59.94p/50.00p)/ALL-I: Approx. 180 Mbps
Full HD (59.94p/50.00p)/IPB  Approx. 60 Mbps
Full HD (29.97p/25.00p/24.00p/23.98p)/ALL-I: Approx. 90 Mbps
Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps
HD (119.9p/100.0p)/ALL-I: Approx. 160 Mbps
MP4:
Full HD (59.94p/50.00p)/IPB (Standard): Approx. 60 Mbps
Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps
Full HD (29.97p/25.00p)/IPB (Light): Approx. 12 Mbps

Built-in monaural microphone (48Khz, 16 bit x 2 ch)

External monitor only, External Monitor only without information display or Simultaneous on camera and external monitor

Full HD recording only, uncompressed YCbCr 4:2:2, 8-bit, sound output via HDMI is also possible

Dual Pixel CMOS AF with Face Detection and Tracking AF, Movie Servo AF
Manual Focus

4K - Auto: 100-12800, H: 25600, H: 32000, H1: 51200, H2: 102400,
Full HD / HD - Auto: 100-25600, H: 32000, H1: 51200, H2:102400

Longitude, Latitude, Elevation, Coordinated Universal Time

Mode 1: Camera continues to receive GPS signals at regular intervals when power is switched off
Mode 2: GPS is switched off when power is switched off

Within approx. 30 m/98.4 ft (Based on good GPS satellite reception conditions on a clear day with no surrounding obstructions)

• GPS satellites (USA)
• GLONASS satellites (Russia)
• Quasi-Zenith Satellite Michibiki (Japan)

NMEA Format. One log file per day based

Transfer log data to memory card and copy it to a computer
Use Map Utility to append the log file to the images

Not provided

17 Custom Functions with 46 settings

User copyright information (can be set in camera)
Image rating (0-5 stars)
IPTC data (registered with EOS Utility)
Image transfer with caption (Caption registered with EOS Utility)

Yes / Yes

Yes

No

Yes

1.5x - 10x  in 15 steps

(1) Single image
(2) Single image with information (2 levels )
Basic - Shooting information (shutter speed, aperture, ISO and Image quality)
Detailed - Shooting information (shutter speed, aperture, ISO, metering  Image, quality and file size), Lens information , Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating)
(8) Movie edit
(9) RAW processing
(10) Rating

Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off

Brightness: Yes
RGB: Yes

Yes

Single image, Selected images, Folder, Card

Erase protection of Single image, Folder or Card

2 or 10 sec.

25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Update possible by the user (Camera, Lens, WFT, External Speedlite)

SuperSpeed USB 3.0

Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support¹¹ Features supported - FTP/FTPS, EOS Utility, SmartPhone, Upload to Web , Wireless printing

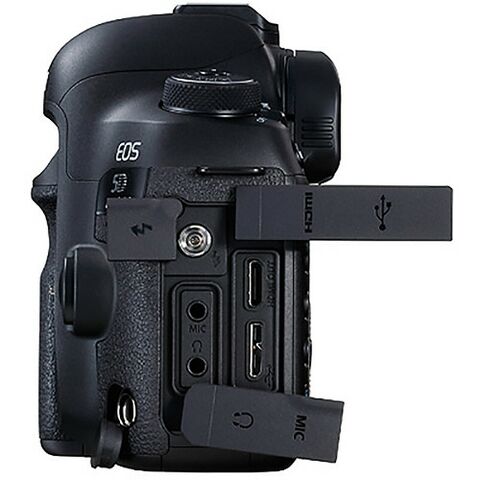

HDMI mini out (Type C, HDMI-CEC compatible), External Microphone In / Line In (Stereo mini jack), Headphone socket (Stereo mini jack),  N3-type terminal (remote control terminal)

Yes (Via Wireless LAN only)

1x CompactFlash Type I (UDMA 7 compatible) (Incompatible with Type II and Microdrive)
1x SD/SDHC/SDXC and UHS-I

Windows 7 SP1 (excl. Starter Edition), Windows 8.1 and Windows 10
OS X v10.9-10.11

Digital Photo Professional 4.5 or later (RAW Image Processing)

EOS Utility 3.5 or later  (inc. Remote Capture ), Picture Style Editor, Map Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app (iOS/ Android)

Rechargeable Li-ion Battery LP-E6N (supplied) / LP-E6

Approx. 900 shots (at 23°C)¹²
Approx. 850 (at 0°C)

6 levels + percentage

Power turns off after 1, 2, 4, 8, 15 or 30mins

Battery charger LC-E6E (supplied), Battery charger LC-E6, AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6

Eyecup Eg, Eg-series Dioptric Adjustment Lens with Rubber Frame Eg, Anti Fog Eyepiece Eg, Angle Finder C

Wireless File Transmitter WFT-E7B

All EF lenses (excluding EF-S / EF-M lenses)

Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX-II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)

Remote control with N3 type contact, Wireless Controller LC-5 and Speedlite 600EX-II-RT

BG-E20 battery grip, Hand Strap E2, Connect Station CS100
