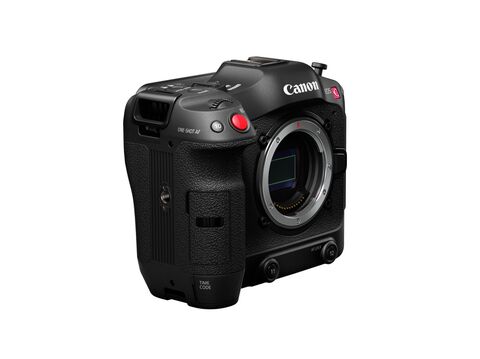

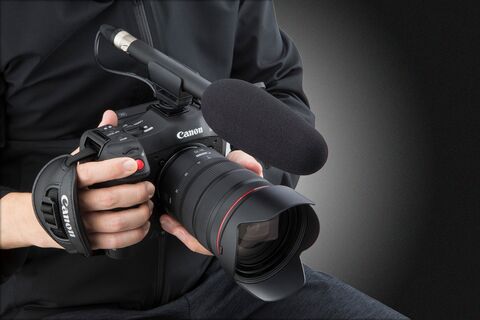

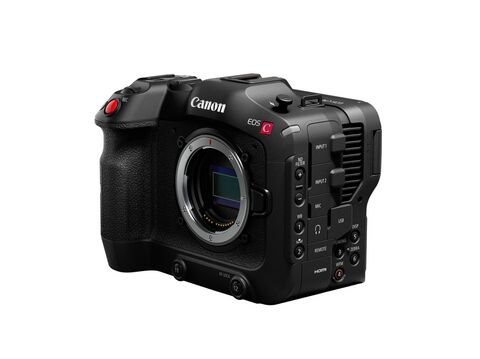

Canon EOS C70

(Promotion ends 31/12/2024)
List price: €5,529.00
€5,029.00
You save: €500.00 (9%)


Discover new dimensions in filmmaking with the Canon RF-mount Cinema EOS System.

The EOS C70 introduces RF Mount Technology to the Cinema EOS System and features Canon’s cutting-edge 4K Super 35mm DGO sensor. With 12-bit RAW Recording, 4K 120P Slow Motion, High Dynamic Range and Eye AF in a compact body, it takes the RF System into a brand-new era.

Pioneering autofocus technology
The EOS C70 features the renowned Dual Pixel CMOS AF (DPAF). Filmmakers can now benefit from accurate and reliable autofocus with subject tracking, face and eye detection. Thanks to Canon's Dual Pixel CMOS AF technology, every pixel in the sensor can be used for both imaging and AF, which means the AF can acquire and track subjects – such as the subject’s eyes – providing sharp critical focus, even with a shallow depth of field.

Cinema RAW light
The EOS C70 features 12-bit RAW recording with Cinema RAW Light up to 645Mbps, truly unleashing the exceptional capabilities of its Super 35mm DGO sensor. Three Cinema RAW Light options are available including LT (Light), ST (Standard) and HQ (High Quality), as well as options for Super 35mm and Super 16mm formats. In addition to the existing 4:2:2 10-bit XF-AVC and HEVC recording formats, the EOS C70 provides even greater workflow flexibility for your production needs.

The RF Mount. The future of imaging
The large diameter RF mount with its short back focus and 12-pin communication delivers a balance of optical and electronic innovation plus scintillating AF speed from Canon’s range of RF lenses.

Versatile. Flexible. Reliable. Your new workhorse
The EOS C70 uses design cues from other RF mount cameras from Canon, with additional controls, environmental protection and a convenient size to fit your production rig.

4K Super 35mm DGO sensor for truly impressive image quality
Equipped with a newly developed 4K Super 35mm sensor and DIGIC DV7 image processor, the EOS C70 delivers a high-resolution image with 16+ stops of Dynamic Range.

Multiple recording formats
Dual UHS-II SD card slots enable simultaneous or relay recording, in different formats. XF-AVC supports ALL-I and Long-GOP, while MP4 recording offers further flexibility.

Lens Versatility
RF lenses offer exceptional quality and speed, with performance optimised for the EOS C70 and EOS R-series cameras. Super-fast focusing and outstanding optical quality combine with unique features such as a Lens Control Ring to provide additional control over settings. EOS R System adapters offer additional creative control, enabling filmmakers to use their existing EF and EF-S lenses.

The MOUNT ADAPTER EF-EOS R 0.71x is an EF to RF mount adapter for using the broad range of Full Frame Canon EF lenses, whilst maintaining the same Full Frame angle of view when used with Super 35mm format.

Professional and practical support functions
Keep your workflow smooth when shooting with the EOS C70 thanks to useful features such as Direct Touch Control, Auto ISO, Vertical shooting, as well as electronic Image Stabiliser.

Professional connectivity and streaming
The Canon XC Protocol is a newly developed IP protocol developed by Canon which allows for remote control of Canon video production equipment. This Protocol adds a new dimension for productions that want to incorporate multiple Canon products into their workflow and add another dimension to their workflow.

Advanced Interface
The EOS C70 inherits many professional features found in existing Cinema EOS cameras, including 13 user-assignable buttons, two Mini XLRs, dedicated audio control dials, and Timecode In/Out. The USB-C port supports 3rd party Wi-Fi and ethernet adapters. Two audio control dials are located on the back for independent adjustment of recording levels. The input source can be selected from line input, the built-in stereo microphone, and the two XLR mic inputs, for a total of 4 channels of audio input.

Manufacturer:
Canon
Canon EOS C70
Canon EOS C70

The answer to your request will be sent to your email address.

Specifications

Image Sensor

  • Sensor
    Super 35mm Dual Gain Output (DGO) sensor
  • null
    RGB primary colour filter (Bayer array)
  • Sensor Modes
    Super 35 mm / Super 16 mm (Crop)
  • Total Pixels
    Approx. 9.6 megapixels (4206 x 2280)
  • Effective Pixels
    Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
    Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
  • Effective Sensor Screen Size
    Super 35 mm;
    26.2 x 13.8 mm (29.6 mm on the diagonal): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
    24.6 x 13.8 mm (28.2 mm on the diagonal): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
  • Dynamic Range
    Canon Log 2: 1600% / 16+ stops
    Canon Log 3: 1600% / 14 stops
    Wide DR: 800% (at ISO 400)

Image Processor

  • Type
    DIGIC DV7

Lens

  • Lens Mount
    Canon RF mount
    Compatible lenses: All RF lenses and all EF lenses
    (includes EF-S lenses/EF cinema lenses)
  • Lens Magnification Factor
    Super 35 mm;
    4096 x 2160, or 2048 x 1080 resolution: Actual focal length x approx. 1.460
    3840 x 2160, or 1920 x 1080 resolution: Actual focal length x approx. 1.534

    Super 16 mm (Cropped);
    2048 x 1080 resolution: Actual focal length x approx. 2.920
    1920 x 1080 resolution: Actual focal length x approx. 3.069

    If using Canon Mount Adapter EF-EOS R 0.71x Adapter there is no change to effective focal length
  • Peripheral Illumination Correction
    Yes
  • Chromatic Aberration Correction
    Yes
  • Distortion Correction
    Yes, RF Mount lenses only
  • Diffraction Correction
    Yes
  • ND Filter
    2, 4 or 6 Stops. Up to 10 stops via built in ND filter system (in extended mode)
  • Iris Control (EF Mount Lenses)
    1/2-stop, 1/3-stop or FINE control
  • Anamorphic Lens Support
    Yes, x2.0 / x1.3
  • Image Stabilization System
    Yes. Function depending on lens used, Digital 5-Axis IS for non IS lenses. Combination of Optical IS and Digital IS to give combined 5-Axis IS. IS performance depends on lens used

Recording

  • Internal Recording Media
    SD card for Cinema RAW Light LT, XF-AVC or MP4 recording. Dual Slot recording.
    SD card also used for Photo Storage (1920 x 1080), CP setting transfer and firmware update
    High speed SD UHS-II cards recommended. V90 standard recommended for all recording functions
  • Recording Time
    Cinema RAW Light LT: 4096 x 2160: 645 Mbps 105 Mins
    XF-AVC / MXF: 4096 x 2160: 410 Mbps 156 Mins
    MP4 (HEVC): 4096 x 2160: 225 Mbps 285 Mins
    MP4: 4096 x 2160: 150Mbps 428 Mins
  • Recording Formats
    Cinema RAW Light (CRM)*: 12-bit RAW
    XF-AVC (MXF) ALL-I or Long GOP, 4:2:2 10-bit
    MP4 H.265/HEVC, 4:2:2 10-bit
    MP4 H.264, 4:2:0 8-bit

    * firmware available in March 2022
  • Relay Recording
    Yes
  • Double Slot (Simultaneous) Recording
    Yes
  • Simultaneous Recording in Multiple Formats
    Yes, in Dual Recording Mode
    Options Available: [Cinema RAW Light LT / XF-AVC / MP4] [All-I / Long GOP] [4:2:2 10-bit / 4:2:0 10-bit / 4:2:0 8-bit] [UHD / 2K / FHD]
  • System Frequency / Frame Rates
    59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
    50.00Hz mode (50.00P / 50.00i / 25.00P)
    24.00 Hz mode (24.00P)
  • Proxy Recording Bit Rate / Sampling (PAL)
    2048 X 1080: 50.00P, 4:2:0 8-bit 35 Mbps/ 1920 x 1080 24 Mbps Long GoP
  • Slow/Fast Motion
    4K recording: up to 120FPS
    2K (Crop) recording: up to 180 FPS
    Audio recording at normal frame rate possible
  • Interval Record
    Yes
  • Frame Record
    Yes
  • Pre Record (Cache Record)
    Yes, 3 seconds (XF-AVC recording only)
  • Scan Reverse
    Yes
  • HD > SD Conversion
    No
  • Photo Storage Media
    SD/SDHC memory card
  • Photo Recording Size
    4096x2160 / 3840x2160 / 2048x1080 / 1920x1080

System

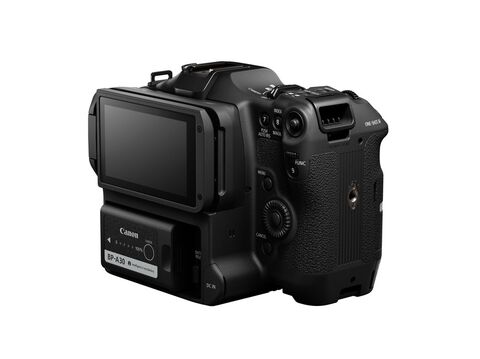

  • Display Type
    3.5 inch LCD Touch Panel
  • Display Resolution
    3.5 inch LCD 2.76 million dots (1280 x 720 x RGB)
  • Display Touch Screen Functions
    Focus point selection, Shooting setting adjust, Start/Stop recording (activated via Menu)
  • OSD for Vertical Shooting
    Yes, via menu or user assignable button
  • Wave Form Monitor
    Yes. LCD or external output via HDMI.
  • False Colour Display (Exposure Indication)
    Yes. LCD or HDMI (Use of viewing LUT will affect false colour display)
  • Colour Bars
    SMPTE, EBU and ARIB
  • Peaking
    Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
  • Zebra
    Level 1; Level 2; Both
    Output via HDMI: Yes
  • Markers
    On/Off selectable: centre, horizontal, grid, aspect, safety zone, rectangular and user marker. Colour selectable, yellow, blue, green, red, black, grey or white.

EVF

  • Built-In EVF
    No

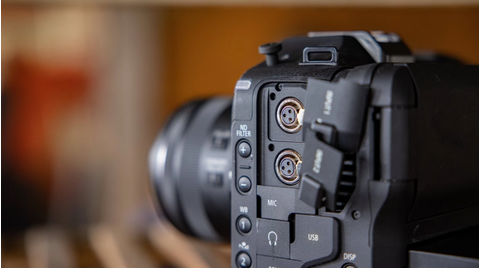

Inputs / Outputs

  • Audio In
    Mini XLR 3-pin connector x2 , 3.5 mm stereo mini jack (input only)
    Built in Stereo microphones on camera body
  • Headphone Output
    3.5 mm stereo mini jack (output only, Camera Body)
  • HDMI
    HDMI connector (Type A) (output only)
  • USB
    Yes, Type C (USB 3.2 Gen1) Connection for optional GPS Unit, or Third Party Wi-Fi, Ethernet adapters
  • Time Code
    BNC / HDMI
  • DC Input
    24V DC IN
  • Remote Control Terminal
    REMOTE A connector 2.5 mm stereo mini-mini jack (input only)
  • IP Streaming / FTP
    Yes. IP streaming requires third-party optional USB-C to Ethernet converter and decoder transmission device.
    FTP via FT server. Transfer of clips on SD card (Media Mode)
  • User LUT Input
    Yes, in-built LUTs/View Assist available for LCD/HDMI Monitoring. Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files).
  • Default Function Button Settings
    1. White balance
    2. Set White Balance
    3. Peaking: All
    4. WFM: All
    5. DISP
    6. Zebra: All
    7. Push Auto Iris
    8. INDEX / Magnification
    9. FUNC
    10. One-Shot AF
    11. (Unassigned)
    12. AF lock
    13. Audio Status
  • User Assignable Buttons
    13 Assignable buttons (numbered) on camera body. In excess of 80 options via the menu

Miscellaneous

  • Tally Lamp
    Yes
  • Custom Dial
    Yes

Exposure

  • Exposure Metering
    Manual exposure determined by shutter setting, iris setting, ISO/gain setting and ND filter setting, Push Auto Iris, Auto Iris
  • Exposure Compensation
    Yes
  • Auto Exposure Mode
    Auto Iris with compatible lenses
  • Push Auto Iris
    Yes
  • Exposure Lock
    No
  • Auto Gain Control Setting
    Yes
  • ISO Sensitivity
    1-Stop Display: [100], 160(*), 200, 400, 800, 1600, 3200, 6400, 12800, 25600, [51200, 102400]
    Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF
    1/3 Stop Display: [100,125], 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800, 16000, 20000, 25600, [32000,40000,51200,64000, 80000,102400]
    When ISO speed expansion is ON.
  • Auto Focus System
    Dual Pixel CMOS AF, Contrast AF. Face Priority, Face Only and Tracking AF modes available
  • AF Frame Sizes
    Large; size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range
    Small; size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range
    Whole Area; size equivalent to approx. 80% of sensor
    Selectable AF point over approx. 80% of sensor
    Dual Pixel AF area approx. 60% when EF mount lens fitted using EF-RF adapter
  • Auto Focus Modes
    One-Shot AF, Continuous AF and AF-Boosted MF. All modes take effect when the AF/MF switch of the EF lens is at the AF setting.
    One-Shot AF, Continuous AF, AF-Boosted MF
  • Face Detection AF
    Face Priority or Face Only.
  • Focus Guide
    All compatible Canon RF, Canon EF lenses, Canon Cine Servo Lenses (EF Mount with EF-RF Mount adapter)
  • Gain Setting
    [-6dB,-3dB], -2dB(*), 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, [45dB, 48dB, 51dB, 54dB]
    Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF.
    When ISO speed expansion is ON: between -2 dB and 54 dB
    When ISO speed expansion is OFF: Any value from -2 dB to 42 dB in 0.5 dB increments can be set.

Shutter

  • Control Modes
    Off; Speed; Angle; Clear Scan (CS); Slow Shutter (SLS)
  • Shutter Speed
    1 sec to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting options
  • Shutter Angle
    11.25º to 360º depending on frame rate
  • Slow Shutter (SLS)
    1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
  • Clear Scan
    24.00 Hz to 250.40 Hz

Custom Picture

  • Stored Configurations
    C1: BT.709 (Wide DR / BT.709 Gamut)
    C2: LOG2 (Canon Log 2 / Cinema Gamut)
    C3: LOG3 (Canon Log3 / Cinema Gamut)
    C4: PQ (PQ / BT.2020 Gamut)
    C5: HLG (HLG / BT.2020 Gamut)
    C6. BT.709 Standard (BT.709 Standard / BT.709)
    USER7 to USER20 (Wide DR / BT.709 Gamut)
  • Colour Matrix
    Neutral: Accurate colour reproduction
    Production Camera: Colour reproduction for use in movie production
    Video: Colour reproduction equivalent to C300/500
    EOS Standard: Reproduces the image quality and look of EOS DSLR picture styles set to [Standard]
    EOS Neutral: Reproduces the image quality and look of EOS DSLR picture styles set to [Neutral]
    CP-OFF (for commercial cameras)
  • Master Pedestal
    -50 to +50
  • Master Black
    Adjustable for each channel RGB -50 to +50 plus Master Black -50 to +50
  • Black Gamma
    Adjustable Level -50 to +50, Range -20 to +50 and Point -20 to +50
  • Low Key Saturation
    Adjustable: -50 to +50
  • Knee
    Point -50 to +109, Slope -35 to +50, Saturation -10 to +10
  • Sharpness
    Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness
  • Noise Reduction
    Off, On - Two Options: Spatial Filter (1-12) / Frame Correlation (1-3)
  • Skin Detail
    Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps
  • Selective Noise Reduction
    Off, Low, Middle, High / Hue, Chroma, Area, Luminance.
  • Colour Matrix (User Settings)
    Phase, Gain and RGB adjustment, in tandem with Gamma selection
  • White Balance
    AWB, USER setting 01(setting range: 2000K to 15000K/ -20CC to
    +20CC), daylight, tungsten, settings (A/B)
  • Colour Correction
    Area selection / area revision of two areas
  • Setup Level
    -50 to +50 On/Off

Wi-Fi & GPS Specifications

  • Wi-Fi (Optional Third Party Accessory)
    (1) WPS [Wi-Fi Protected Setup] (push-button system, PIN code system)
    (2) Manual setup
    (3) Search for access points
    Open system, WPA-PSK, WPA2-PSK, WEP-64, WEP-128, TKIP, AES, Auto /manual
  • GPS Information (Optional Accessory)
    Latitude/Longitude/Elevation, Coordinated Universal Time (UTC)

White Balance

  • Auto
    YES
  • Preset
    Daylight (5400K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
  • White Balance Matching
    Yes, for previous models
  • White Balance Shift
    YES. -9 to +9 (Daylight and Tungsten only)

Black Balance

  • Black Balance Adjustment
    YES

Time Code

  • Count Up System
    Regen, RecRun, Free Run, External, Hold (Drop frame available for some frame rates)
  • Start Value Setting
    “00:00:00:00”, Set/Reset selectable

Audio

  • Recording Format
    Cinema RAW Light LT / XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels)
    MP4: MPEG-2 AAC LC (16-bit, 48 kHz, 2-channel) / Linear PCM (16-bit, 48 kHz, 4-channel)

Accessories

  • Supplied
    Mic holder unit
    Handle unit
    Compact power adapter CA-CP200L
    Battery Charger CG-A20 OTH
    AC cable
    Battery pack
    (BP-A30)

    Other items: Includes camera cover, shoe adapter knob, and microphone holder screws.
  • Optional
    Canon Battery Pack BP-A30 (provided with camera)/BP-A60
    Canon Battery Charger CG-A10/CG-A20 (provided with camera)
    Canon Remote Controller RC-V100
    Canon Compact Power Adapter CA-CP200L (provided with camera)
    Canon Shoulder Strap SS-1200 (provided with camera)
    Canon Shoulder Support Unit SU-15
    Canon GPS Receiver GP-E2
    Canon RF lenses, EF lenses, EF cinema lenses,
    and accessories designed for these lenses
    Canon Mount Adapter EF-EOS R
    Canon Control Ring Mount Adapter EF-EOS R
    Canon Drop-In Filter Mount Adapter EF-EOS R
    (w/ drop-in variable ND filter A and circular polarizing filter A)
  • Third Party Accessories
    Wi-Fi Adapter, Ethernet Adapter (TBC)

Power Source

  • Power Supply (Battery)
    BP-A30 (Supplied) BP-A60 (Optional)
  • Power supply (Mains)
    Compact Power Adapter CA-CP200L: 24V DC
  • Power Consumption (Approx.)
    Max power consumption: 14.6W
  • Recording Time (Approx.)
    With supplied BP-A30 battery pack:
    Super 35mm, 4096x2160/50.00P 175 Mins
    Super 16mm, 2048x1080/50.00P 205 Mins

Physical Specifications

  • Dimensions (Main Body Only)
    160 x 130 x 116 mm
  • Weight (Body Only)
    1190g (with grip belt and measure hook)
  • Weight (Accessories)
    Approx. 1620 g (BP-A30, 2 SD cards, Handle Unit, Microphone Holder, Grip belt, and Measure hook)
  • Operating Temperature Range
    Approx. 0 to 40°C, (85% relative humidity)
    Approx. -5 to 45°C, (60% relative humidity)
