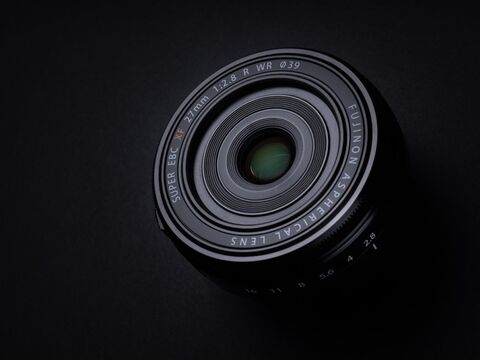

A compact weather-resistant, pancake-style XF 27mm F2.8 R WR Lens

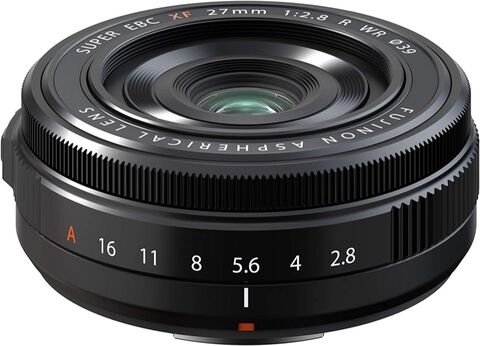

Aperture ring with F-stop scale and A-Position lock
XF27mmF2.8 now features an aperture ring with an F-stop scale, so that users can visually check and adjust their aperture settings without needing to look at the camera’s screen or through its viewfinder. The aperture ring also features the A (Auto) Position Lock*1, which locks the lens into the A-Position to prevent unintentional adjustments to the lens’s aperture while it is being used.
*Rotating the aperture ring from f16 to the A-Position locks the ring, and rotating the ring from the A-Position to f16 while holding down the Lock Release button disengages the lock.

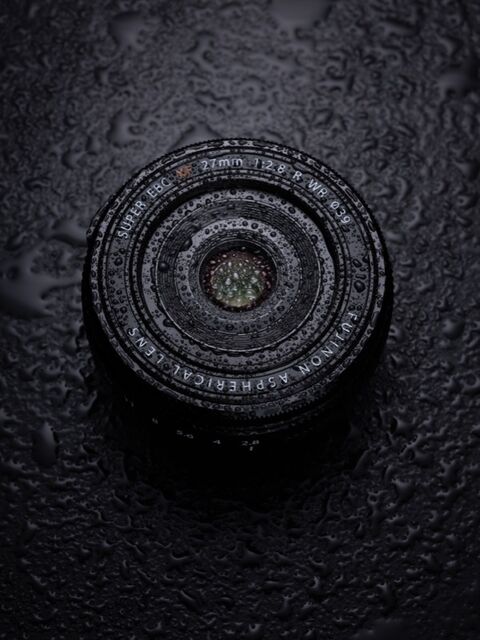

Weather-resistant construction
Weather-Resistance has been applied at seven locations on the lens to protect against water and dust and allow it to fully operate in temperatures down to -10°C (14°F).
Lens hood included
In addition to the standard lens cap, XF27mmF2.8 comes packaged with a dome-shaped lens hood (LH-XF27) and a hood cap (LHCP-27) to provide options to protect the lens, and accommodate users that prefer using low-profile hoods over lens caps because of their convenience.
Thin and lightweight design combined with advanced image quality
Since the diameter of the image circle needed to cover an APS-C sensor (28.4mm) is so close in dimension to XF27mmF2.8’s focal length, it is possible to design an incredibly compact lens that produces high quality images.
Despite its compact size, the lens consists of seven lens elements in five groups, including one aspherical element, which mitigates spherical aberration, field curvature, and distortion. This allows XF27mmF2.8 to deliver advanced image resolution, even when it is used at its widest apertures.
XF27mmF2.8 features a high-torque DC motor to enable fast and accurate AF, while the front lens group of five lens elements effectively maintains image quality by minimising aberrations that may occur when the lens is used for close-ups or with subjects that are further away.
One of the thinnest and lightest XF lenses in the collection, XF27mmF2.8 R WR measures just 62mm (2.4in) in diameter and is only 23mm (0.9in) long. The lens is very lightweight at approximately 84g (2.9oz), which makes it an ideal choice for assignments where compactness and overall size are a concern.
