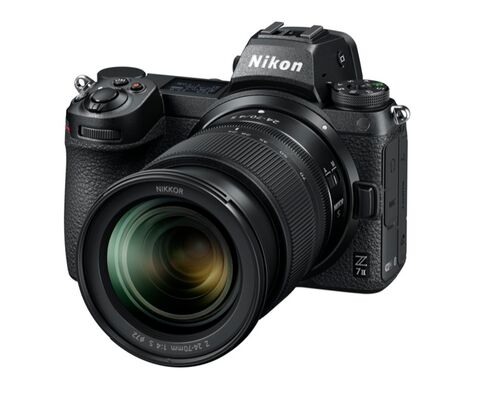

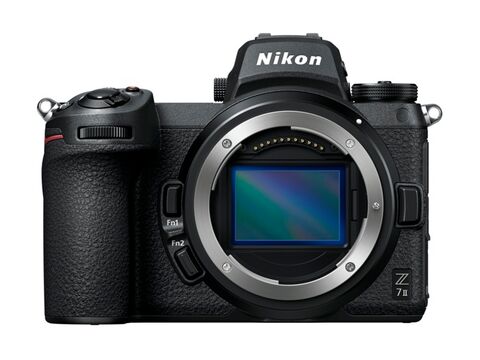

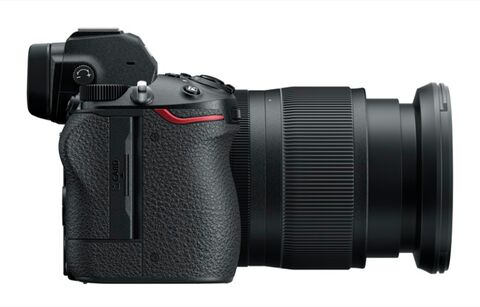

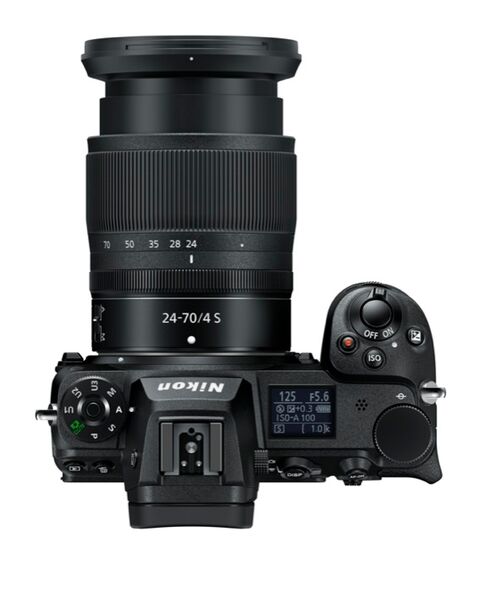

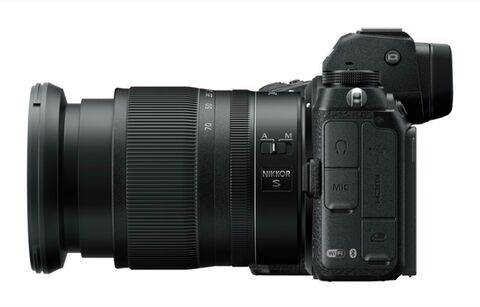

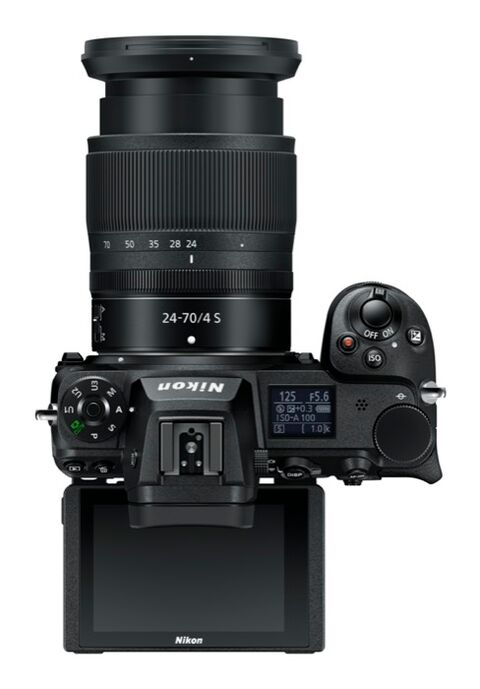

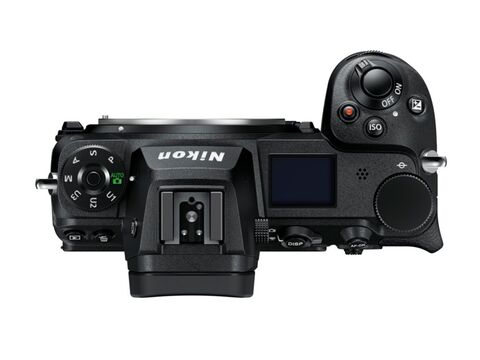

Nikon Z 7II Mirrorless Digital Camera

Mirrorless

Nikon Z mount

FX

CMOS, 35.9 mm x 23.9 mm

46.89 million

Image sensor cleaning, Image Dust Off reference data (Capture NX-D software required)

45.7 million

[FX (36 x 24)] selected for image area: (L)8256 x 5504 (45.4 million), (M)6192 x 4128 (25.6 million), (S)4128 x 2752 (11.4 million), [DX (24 x 16)] selected for image area: (L)5408 x 3600 (19.5 million), (M)4048 x 2696 (10.9 million), (S)2704 x 1800 (4.9 million), [5:4 (30 x 24)] selected for image area: (L)6880 x 5504 (37.9 million), (M)5152 x 4120 (21.2 million), (S)3440 x 2752 (9.5 million), [1:1 (24 x 24)] selected for image area: (L)5504 x 5504 (30.3 million), (M)4128 x 4128 (17.0 million), (S)2752 x 2752 (7.6 million), [16:9 (36 x 20)] selected for image area: (L)8256 x 4640 (38.3 million), (M)6192 x 3480 (21.5 million), (S)4128 x 2320 (9.6 million), Photographs taken while filming movies at a frame size of 3840 x 2160: 3840 x 2160, Photographs taken while filming movies at other frame sizes: 1920 x 1080

NEF (RAW): 12 or 14 bit (lossless compressed, compressed, or uncompressed); large, medium, and small available (medium and small images are recorded at a bit depth of 12 bits using lossless compression), JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression; size-priority and optimal-quality compression available, NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

Auto, Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat, Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon); selected Picture Control can be modified; storage for custom Picture Controls

CFexpress (Type B), XQD, SD, SDHC (UHS-II compliant), SDXC (UHS-II compliant)

1 CFexpress card or XQD card and 1 Secure Digital (SD) card, Either card can be used for primary or backup storage or for separate storage of NEF (RAW) and JPEG images; pictures can be copied between cards.

DCF 2.0, Exif 2.31

1.27-cm/0.5-in. approx. 3690k-dot (Quad VGA) OLED electronic viewfinder with color balance and auto and 11-level manual brightness controls

Approx. 100% horizontal and 100% vertical

Approx. 0.8x (50 mm lens at infinity, -1.0 m-¹)

21 mm (-1.0 m-¹; from center surface of viewfinder eyepiece lens)

-4 to +2 m-¹

Automatically switches between monitor and viewfinder displays

Z mount NIKKOR lenses F mount NIKKOR lenses (mount adapter required; restrictions may apply)

Electronically-controlled vertical-travel focal-plane mechanical shutter; electronic front-curtain shutter; electronic shutter

1/8000 to 30 s, (choose from step sizes of 1/3 and 1/2 EV, extendable to 900 s in mode M), bulb, time x 200

X=1/200 s; synchronizes with shutter at 1/200 s or slower; auto FP high-speed sync supported

S (single frame), CL (continuous low speed), CH (continuous high speed), Continuous H (extended), Self-timer

Up to 10 fps, Continuous L: Approx. 1 to 5 fps Continuous H: Approx. 5.5 fps (14-bit NEF/RAW: Approx. 5 fps) Continuous H (extended): Approx. 10 fps (14-bit NEF/RAW: Approx. 9 fps)

2 s, 5 s, 10 s, 20 s; 1 to 9 exposures at intervals of 0.5, 1, 2, or 3 s

TTL metering using camera image sensor

Matrix metering Center-weighted metering: Weight of 75% given to 12 mm circle in center of frame; weighting can instead be based on average of entire frame Spot metering: Meters 4 mm circle (about 1.5% of frame) centered on selected focus point Highlight-weighted metering

-3 to +17 EV

Auto, P: programmed auto with flexible program, S: shutter-priority auto, A: aperture-priority auto, M: manual U1, U2 and U3: user settings modes

–5 to +5 EV, in increments of 1/3 or 1/2 EV, available in modes P, S, A, and M

Luminosity locked at detected value

ISO 64 to 25600, in steps of 1/3 or 1/2 EV, can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 32 equivalent) below ISO 64 or to approx. 0.3, 0.5, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control available (Recommended Exposure Index)

Auto, Extra high, High, Normal, Low, and Off

Add, average, lighten, darken

HDR (high dynamic range), photo mode flicker reduction

Hybrid phase-detection/contrast AF with AF assist

-3 to +19 EV (with low-light AF: -4 to +19 EV)

Single-servo AF (AF-S), Continuous-servo AF (AF-C), full-time AF (AF-F; available only in movie mode); predictive focus tracking, Manual focus (M): Electronic rangefinder can be used

493

Pinpoint (available in photo mode only), single-point, and dynamic-area AF (available in photo mode only); wide-area AF (S); wide-area AF (L); wide-area AF (L-people); wide-area AF (L-animals); auto-area AF; auto-area AF (people); auto-area AF (animals)

Focus can be locked by pressing shutter-release button halfway (single-servo AF/AF-S) or by pressing the center of the sub-selector

5-axis image sensor shift

Lens shift (available with VR lenses)

TTL: i-TTL flash control; i-TTL balanced fill-flash is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash with spot metering

Front-curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, off

-3 to +1 EV in steps of 1/3 or 1/2 EV, available in modes P, S, A, and M

Lights when optional flash unit is fully charged; flashes as underexposure warning after flash is fired at full output

ISO 518 hot-shoe with sync and data contacts and safety lock

i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, auto FP high-speed sync, unified flash control

Auto (3 types), natural light auto, direct sunlight, cloudy, shade, incandescent, fluorescent (7 types), flash, choose color temperature (2500 K to 10,000 K), preset manual (up to 6 values can be stored), all with fine-tuning except choose color temperature

Exposure and/or flash, white balance, ADL

TTL exposure metering using main image sensor, TTL metering using camera image sensor

Matrix, center-weighted, or highlight-weighted

3840 x 2160 (4K UHD): 60p (progressive)/50p/30p/25p/24p, 1920 x 1080: 120p/100p/60p/50p/30p/25p/24p, 1920 x 1080 (slow-motion): 30p x4/25p x4/24p x5

MOV, MP4

H.264/MPEG-4 Advanced Video Coding

Linear PCM (for movies recorded in MOV format), AAC (for movies recorded in MP4 format)

Built-in stereo or external microphone with attenuator option; sensitivity adjustable

M: Manual selection (ISO 64 to 25600; choose from step sizes of 1/3 and 1/2 EV); with additional options available equivalent to approximately 0.3, 0.5, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control (ISO 64 to Hi 2.0) available with selectable upper limit P, S, A: Auto ISO sensitivity control (ISO 64 to Hi 2.0) with selectable upper limit Auto: Auto ISO sensitivity control (ISO 64 to 25600) (Recommended Exposure Index)

Same as photo settings, Extra high, High, Normal, Low, and Off

Time-lapse movie recording, electronic vibration reduction, time codes, logarithmic (N-Log) and HDR (HLG) movie output

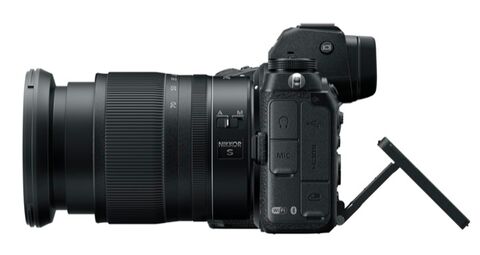

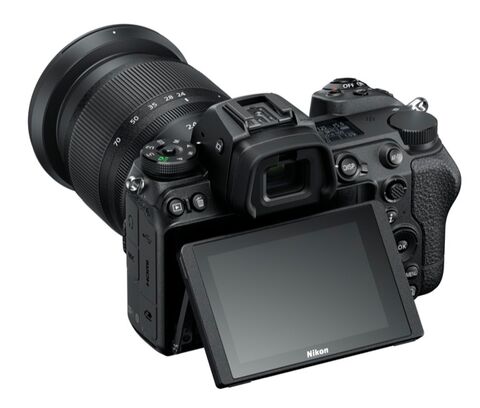

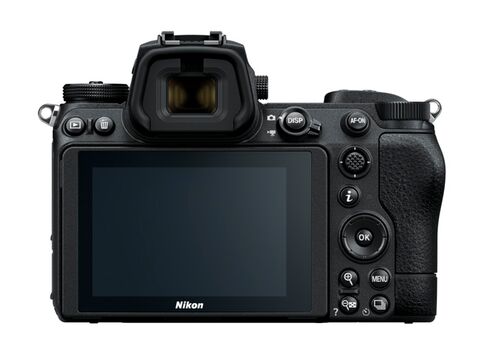

8-cm (3.2–in.) diagonal; Tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, and color balance and 11-level manual brightness controls; Approx. 2100k-dot

Full-frame and thumbnail (4, 9, or 72 images) playback with playback zoom, playback zoom cropping, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, auto image rotation, and picture rating

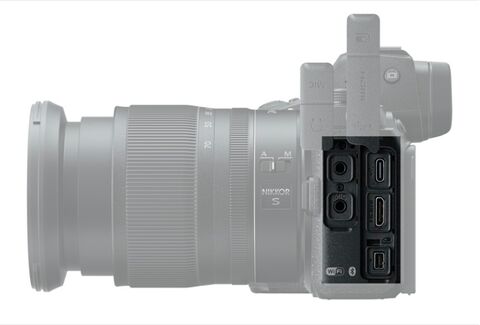

Type C USB connector (SuperSpeed USB); connection to built-in USB port is recommended

Type C HDMI connector

Stereo mini-pin jack (3.5 mm diameter; plug-in power supported)

Stereo mini-pin jack (3.5 mm diameter)

Built-in (can be used with MC-DC2 remote cords and other optional accessories)

IEEE 802.11b/g/n/a/ac

2412 to 2462 MHz (channel 11) and 5180 to 5320 MHz

5.2 dBm (2.4 GHz) 8.3 dBm (5 GHz)

Open system, WPA2-PSK

Bluetooth Specification Version 4.2; Bluetooth: 2402 to 2480 MHz; Bluetooth Low Energy: 2402 to 2480 MHz; Bluetooth: –0.3 dBm; Bluetooth Low Energy: –1.8 dBm; Range (line of sight): Approximately 10 m (32 ft)⁷

One EN-EL15c rechargeable Li-ion battery

MB-N11 power battery pack and MB-N10 battery pack (available separately); each takes two EN-EL15c⁹ batteries

EH-7P charging AC adapter (supplied); EH-5d/EH-5c/EH-5b AC adapter; requires EP-5B power connector (available separately)

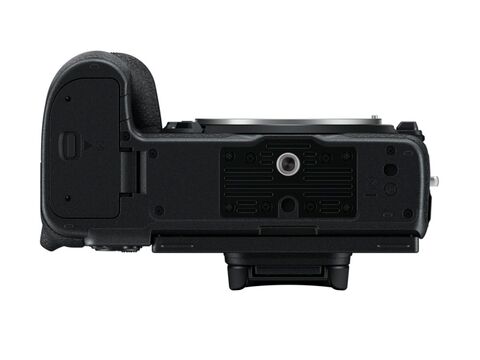

1/4 in. (ISO 1222)

Approx. 134 x 100.5 x 69.5 mm (5.3 x 4 x 2.8 in.)

Approx. 705 g (1 lb. 8.9 oz.), with battery and memory card but without body cap; approx. 615 g/1 lb. 5.7 oz. (camera body only)

0 °C to 40 °C (+32 °F to 104 °F)

85% or less (no condensation)

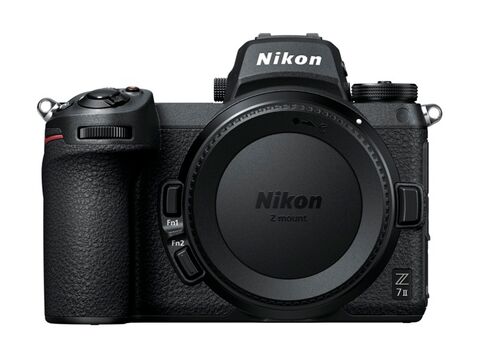

BF-N1 Body Cap, DK-29 Rubber Eyecup (comes attached to camera), EN-EL15c Rechargeable Li-ion Battery with terminal cover, MH-25a Battery Charger (comes with either an AC wall adapter or power cable of a type and shape that varies with the country or region of sale), HDMI/USB Cable Clip, AN-DC19 Strap, UC-E24 USB Cable, EH-7P Charging AC Adapter (supplied with a plug adapter attached in countries or regions where required; shape depends on country of sale), BS-1 Accessory Shoe Cover
