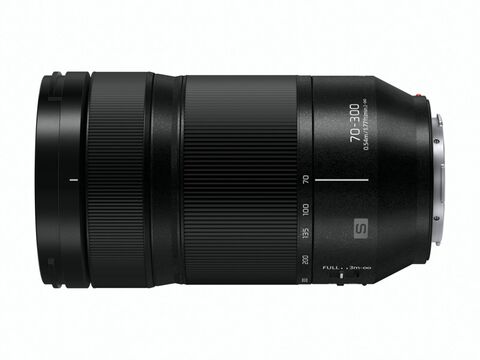

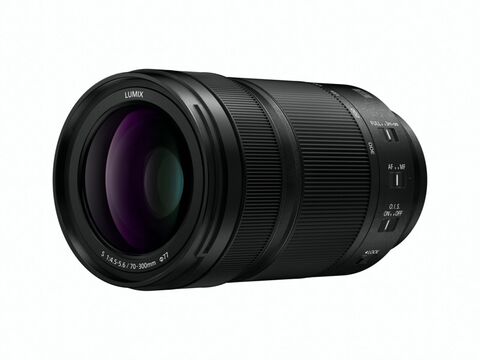

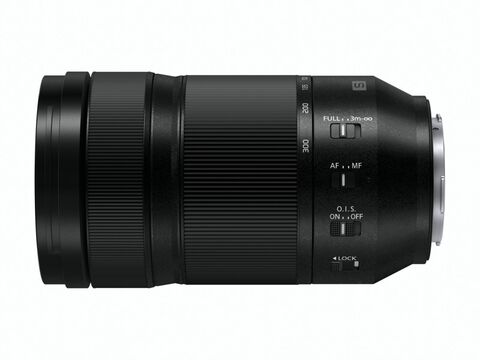

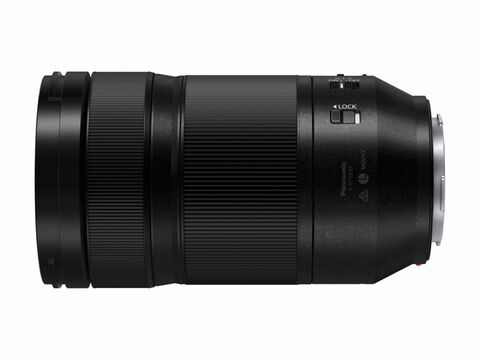

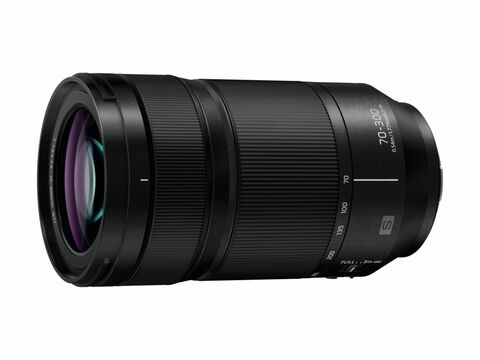

70-300mm Zoom with Excellent Image Quality
The lens optical design is compact and lightweight, yet it provides a 300mm zoom at the telephoto end to dynamically bring your subject, such as wildlife or sports, up close. The powerful zoom gives you increased creative flexibility when shooting outdoors. The optimised configuration has 17 elements in 11 groups, including two ED, one UED and one UHR lens to minimise aberrations and ensure superb resolution.
Superb Close-up Performance
With a minimum focusing distance of 0.54m* and maximum magnification of 0.5x (at 300m), the 70-300mm allows you the freedom to shoot outstanding macro photography. Close-up views of small and sensitive subjects, such as birds and butterflies, can be easily captured from a distance.
* Closest focusing distance of 0.54m (at 70mm) / 0.74m (at 300mm).
Beautiful Rendition of Light
The 11-blade circular aperturediaphragm features optimised blade shape and arrangement. This produces a beautiful rendition of light sources within your images, such as sunlight shining through tree leaves and colourful illuminations, by creating soft and exquisitely attractive beams of light.
Optical Image Stabilisation for Ultra-Sharp Photos

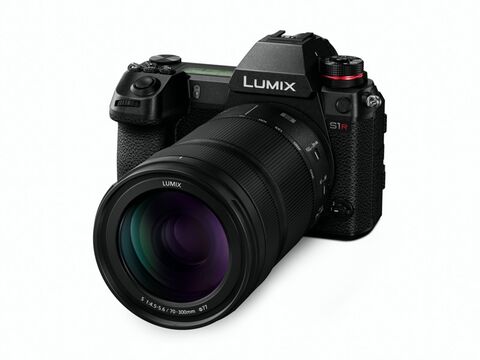

Combining the O.I.S. (Optical Image Stabiliser) in the lens and the Body I.S. in your LUMIX S Series camera, the 5-axis Dual I.S. 2 powerfully compensates for handshake, making it possible to use a 5.5-stop slower shutter speed.
Dust, Splash, and Freeze Resistant Design
The LUMIX S 70-300mm F4.5-5.6 MACRO O.I.S. is designed to keep shooting even in the toughest conditions thanks to its dust and splash resistant construction, even in temperatures as low as -10 °C.
* Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Key features:
Lens Construction |
17 elements in 11 groups (2 ED lenses, 1 UED lens, 1 UHR lens) |
Mount |
L-Mount |
Optical Image Stabilizer |
Yes |
Focal Length |
f=70-300mm |
Aperture Type |
11 diaphragm blades / Circular aperture diaphragm |
Maximum Aperture |
F4.5 (Wide) - F5.6 (Tele) |
Minimum Aperture |
F22 |
Closest Focusing Distance |
0.54m/1.77ft (at focal length 70mm) / 0.74m/2.43ft (at focal length 300mm) |
Maximum Magnification |
0.5x (at focal length 300mm) |
Diagonal Angle of View |
34°(Wide) - 8.3°(Tele) |
Dust and Splash Resistant |
Yes* |
Recommended Operating Temperature |
-10℃ to 40℃ (14℉ to 104℉) |
Filter Size |
φ77mm |
Max. Diameter |
φ84.0mm / 3.31inch |
Overall Length |
Approx.148.0mm / 5.83inch (from the tip of the lens to the base side of the lens mount) |
Weight |
Approx. 790g / 1.75lb (excluding lens cap, lens rear cap and lens hood) |
Standard Accessories |
Lens cap, Lens rear cap, Lens hood |
