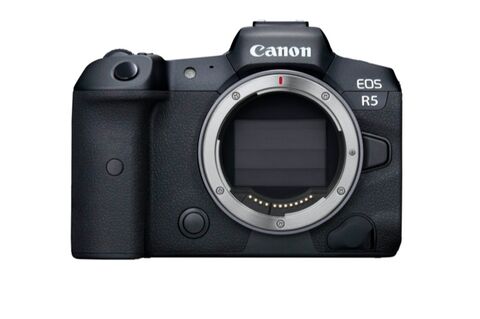

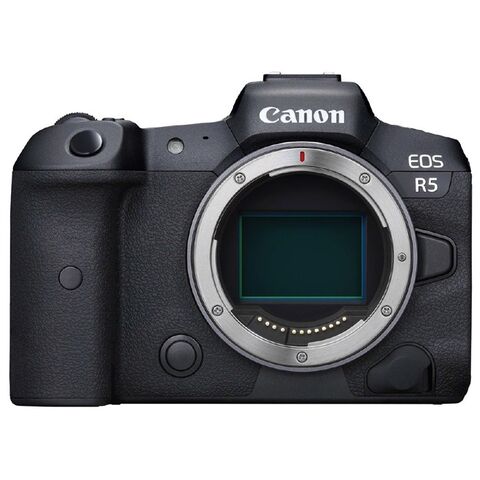

Canon EOS R5

Image Sensor

• Type
  35.9 x 23.9 mm CMOS
• Effective Pixels
  Approx. 45 megapixels
• Total Pixels
  Approx. 47.1 megapixels
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  EOS integrated cleaning system
• Colour Filter Type
  Primary Colour
• Sensor Shift-IS
  Yes, up to 8-Stops advantage depending on the lens used ¹

Image Processor

• Type
  DIGIC X

Lens

• Lens Mount
  RF (EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R Drop-In Filter Mount Adapter EF-EOS R) EF-M lenses are not compatible
• Focal Length
  Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with EF-S

Focusing

• Type
  Dual Pixel CMOS AF
• AF System / Points
  100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes 100% horizontal and 90% vertical with manual selection and large zone modes ²
• AF Working Range
  EV -6 – 20 (at 23°C & ISO100) ³
• AF Modes
  One Shot Servo AF AI Focus AF (in A+ Scene Intelligent Auto mode )
• AF Point Selection
  Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected Manual selection: 1-point AF (AF frame size can be changed) 5940 (stills)/ (4500) movie AF positions available Manual selection: AF point Expansion 4 points (up, down, left, right) Manual selection: AF point Expansion surrounding points Manual selection: Zone AF (all AF points divided into 9 focusing zones) Manual selection: Large Zone AF (Vertical) Manual selection: Large Zone AF (Horizontal)
• AF Lock
  Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
• AF Assist Beam
  Emitted by built in LED or optional dedicated Speedlite (flash)
• Manual Focus
  Selected on lens

Exposure Control

• Metering Modes
  Real-time with image sensor, 384-zone metering. (1) Evaluative metering (linked to All AF points) (2) Partial metering (approx. 5.8% of viewfinder at centre) (3) Spot metering: Centre spot metering (approx. 2.9% viewfinder at centre) AF point-linked spot metering not provided (4) Centre weighted average metering
• Metering Brightness Range
  EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
• AE Lock
  Auto: AE lock takes effect when focus is achieved Manual: By AE lock button in P, Av, Fv, Tv and M modes
• Exposure Compensation
  `+/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
• AEB
  +/-3 EV in 1/3 or 1/2 stop increments
• Anti-flicker Shooting
  Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease
• ISO Sensitivity

  Open





  Auto 100-51,200 (in 1/3-stop or 1 stop increments) ISO can be expanded to L:50, H:102,400 ⁴

Shutter

• Type
  Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
• Speed
  30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release
  Soft touch electromagnetic release

White Balance

• Type
  Auto white balance with the imaging sensor
• Settings
  AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation: 1. Blue/Amber +/-10 2. Magenta/Green +/-10
• WB Bracketing
  `+/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release Selectable Blue/Amber bias or Magenta/Green bias

Viewfinder

• Type
  0.5-inch OLED colour EVF
• Dot Count
  5.76 Million dots
• Coverage (Vertical/Horizontal)
  Approx. 100%
• Magnification
  Approx. 0.76x ⁵
• Eyepoint
  Approx. 23mm (from eyepiece lens centre)
• Dioptre Correction
  -4 to +2 m-1 (dioptre)
• Viewfinder Information
  Shutter speed, Aperture, ISO speed, AF point information, Exposure level indicator, Number of remaining exposures, Exposure compensation, Battery level, Electronic shutter, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Dual Pixel RAW shooting, Self-timer shooting mode, Maximum burst, AF method, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still/video cropping, Shooting mode, Aspect ratio, Scene icons Auto Lighting Optimizer, AE lock Picture Style, Flash-ready, White balance, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi on/off, , Histogram, Electronic level, Focus distance scale in manual focus, IS system, Audio Level – Manual (video), recording time remaining (video), headphone level (video), Video recording resolution frame rate and compression (video) Rec indicator (video)
• Depth of Field Preview
  Yes, via customised button
• Eyepiece Shutter
  N/A

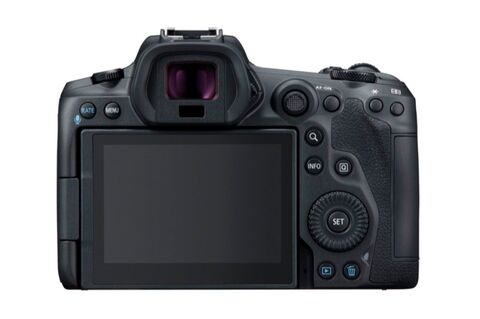

LCD Monitor

• Type
  8cm (3.15") Clear View LCD II, approx. 2.1 million dots
• Coverage
  Approx. 100%
• Viewing Angle (Horizontally/Vertically)
  Approx. 170° vertically and horizontally
• Coating
  Anti-smudge.
• Brightness Adjustment
  Manual: Adjustable to one of seven levels Colour Tone Adjustment: 4 settings
• Touch Screen Operations
  Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
• Display Options
  (1) Basic Camera settings (2) Advance Camera settings (3) Camera settings plus histogram and dual level display (4) No info (5) Quick Control Screen

Flash

• Modes
  E-TTL II Auto Flash, Metered Manual
• X-Sync
  1/200sec mechanical shutter / 1/250th electronic 1st curtain
• Flash Exposure Compensation
  +/- 3EV in 1/3 or 1/2 stop increments with EX series Speedlite flashes
• Flash Exposure Bracketing
  Yes, with compatible External Flash
• Flash Exposure Lock
  Yes
• Second Curtain Synchronisation
  Yes via Speedlite
• HotShoe / PC Terminal
  Yes/No
• External Flash Compatibility
  E-TTL II with EX series Speedlite, wireless multi-flash support
• External Flash Control
  via camera menu screen

Shooting

• Modes
  Stills; Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3) Movie: Auto Exposure, Manual
• Picture Styles
  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space
  sRGB and Adobe RGB
• Image Processing
  Dual Pixel RAW – Portrait Relighting, Background Clarity ( in camera) Highlight Tone Priority (2 settings) Auto Lighting Optimizer (4 settings) Long exposure noise reduction Clarity High ISO speed noise reduction (4 settings) (stills and video) Lens optical correction - Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only) - Diffraction correction, Digital Lens Optimizer (during/after still photo shooting) Resize to M, S1, S2 Cropping of images (JPEG/HEIF) - Aspect ratios 3:2, 4:3, 16:9, 1:1 - Switch between vertical and horizontal cropping orientation - Image straightening - Cropping frame can be moved using touch screen operation RAW image processing Multiple exposure HDR HEIF to Jpeg conversion
• Drive Modes
  Single, Continuous High+, Continuous High, Continuous Low, Self timer (2s+remote, 10s+remote)
• Continuous Shooting
  Max. Approx. 12fps. with Mechanical shutter or 20fps with electronic shutter speed maintained for 350 JPEG or 180 RAW images ⁶
• Interval Timer
  Built in

File Type

• Still Image Type
  JPEG: 2 compression options RAW: RAW, C-RAW 14 bit (14-bit with Mechanical shutter and Electronic 1st Curtain, 13-bit A/D conversion with H+ mode, 12-bit A/D conversion with Electronic shutter, Canon original RAW 3rd edition) HEIF: 10bit HEIF is available in HDR shooting with [HDR PQ] set to [Enable] Complies with Exif 2.31 and Design rule for Camera File system 2.0 Complies with Digital Print Order Format [DPOF] Version 1.1
• RAW+JPEG Simultaneous Recording
  Yes, any combination of RAW + JPEG or RAW + HEIF possible
• Image Size
  JPEG / HEIF 3:2 ratio (L, RAW, C-RAW) 8192x5464, (M1) 5808x3872, (S1) 4176x2784, (S2) 2400x1600 1.6x (crop) (L) 5088x3392, (S2) 2400x1600 4:3 ratio (L) 7280x5464, (M1) 5152x3872, (S1) 3712x2784, (S2) 2112x1600 16:9 ratio (L) 8192x4608, (M1) 5808x3264, (S1) 4176x2344, (S2) 2400x1344 1:1 ratio (L) 5456x5456, (M1) 3872x3872, (S1) 2784x2784, (S2) 1600x16001:1 ratio (L) 3648 x 3648, (M) 2432 x 2432, (S1) 1824 x 1824, (S2) 1600 x 1600
• Folders
  New folders can be manually created, named and selected
• File Numbering
  (1) Consecutive numbering (2) Auto reset (3) Manual reset
• File Naming
  2 User presets

EOS Movie

• Movie Type
  MP4 Video: 8K DCI/ UHD (17:9 / 16:9) 4K DCI/ UHD (17:9 / 16:9), Full HD ⁷
• Movie Size
  8K/4K/ Full HD: AVC/H.265 variable (average) bit rate, Audio: Linear PCM 4K/ Full HD: MPEG4 AVC/H.264 variable (average) bit rate, Audio: Linear PCM 8K RAW: 12bit CRM Audio: Linear PCM 8K DCI (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) RAW, intra or inter frame 8K UHD (16:9) 7680 x 4320 (29.97, 25, , 23.98 fps) intra or inter frame 4K DCI (17:9) 4096 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) intra or inter frame 4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame Full HD (16:9) 1920 x 1080 HDR (29.97, 25 fps) inter frame Full HD (16:9) 1920 x 1080 (29.97, 25) light inter frame ^8 9
• Colour Sampling (Internal Recording)
  8K/ 4K/ Full HD - YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit
• Canon Log
  Yes, Canon Log 1
• Movie Length
  Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT formatted SD card.
• High Frame Rate Movie
  MOV Video: 4K – DCI 4096x2160 or UHD 3840x2160 UHD at 100fps or 119.9fps (10) Recorded as 1/4-speed slow motion movie Single scene maximum recording up to 7min 29sec. ¹⁰
• Frame Grab
  35.4-megapixel JPEG still image frame grab from 8K DCI movie possible 33.2-megapixel JPEG still image frame grab from 8K UHD movie possible 8.8-megapixel JPEG still image frame grab from 4K DCI movie possible 8.3-megapixel JPEG still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)
• Bitrate / Mbps

  CRM:

  8k Raw (29.97p/25.00p/24.00p/23.98p): Approx. 2600 Mbps MOV: MP4 H.264 Canon Log off

  8K ALL-I (29.97p/25.00p/24.00p*/23.98p): Approx. 1300 Mbps

  8K IPB (29.97p/25.00p/24.00p*/23.98p): Approx. 470 Mbps

  4K (119.9p / 100p): Approx. 1880 Mbps

  4K (59.94p/50.00p): ALL-I Approx. 940 Mbps

  4K (59.94p/50.00p): IPB Approx. 230 Mbps

  4K (29.97p/25.00p/24.00p/23.98p): ALL-I Approx. 470 Mbps

  4K (29.97p/25.00p/24.00p/23.98p): IPB Approx. 120 Mbps

  Full HD (59.94p/50.00p)/ALL-I: Approx. 180 Mbps

  Full HD (59.94p/50.00p)/IPB Approx. 60 Mbps

  Full HD (29.97p/25.00p/24.00p/23.98p)/ALL-I: Approx. 90 Mbps

  Full HD (29.97p/25.00p/24.00p/23.98p)/IPB: Approx. 30 Mbps

  Full HD (29.97p/25.00p)/IPB (Light): Approx. 12 Mbps

  8K Time Lapse (29.97p/25.00p) ALL-I: Approx. 1300 Mbps

  4K Time Lapse (29.97p/25.00p) ALL-I: Approx. 470 Mbps

  Full HD Time Lapse (29.97p/25.00p) ALL-I: Approx. 90 Mbps

  MOV: MP4 H.265 Canon Log on

  8K ALL-I (29.97p/25.00p/24.00p*/23.98p): Approx. 1300 Mbps

  8K IPB (29.97p/25.00p/24.00p*/23.98p): Approx. 680 Mbps

  4K (119.9p / 100p): Approx. 1880 Mbps

  4K (59.94p/50.00p): ALL-I Approx. 1000 Mbps

  4K (59.94p/50.00p): IPB Approx. 340 Mbps

  4K (29.97p/25.00p/24.00p/23.98p): ALL-I Approx. 470 Mbps

  4K (29.97p/25.00p/24.00p/23.98p): IPB Approx. 170 Mbps

  Full HD (59.94p/50.00p)/ALL-I: Approx. 230 Mbps

  Full HD (59.94p/50.00p)/IPB Approx. 90 Mbps

  Full HD (29.97p/25.00p/24.00p/23.98p)/ALL-I: Approx. 135 Mbps

  Full HD (29.97p/25.00p/24.00p/23.98p)/IPB: Approx. 45 Mbps

  Full HD (29.97p/25.00p)/IPB (Light): Approx. 28 Mbps

  8K Time Lapse (29.97p/25.00p) ALL-I: Approx. 1300 Mbps

  4K Time Lapse (29.97p/25.00p) ALL-I: Approx. 470 Mbps

  Full HD Time Lapse (29.97p/25.00p) ALL-I: Approx. 135 Mbps ¹¹

• Microphone
  Built-in mono microphone (48 Khz, 16-bit x 2 channels)
• HDMI Display
  Output to external monitor only (output of images and shooting information, images are recorded to the card) Camera screen and External Monitor output ( Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)
• HDMI Output
  4K (DCI) 59.94p / 50.00p/29.97p /25.00p/24.00p/ 23.98p, 4K (UHD) 59.94p / 50.00p/ 29.97p / 25.00p / 23.98p, Full HD 59.94p / 59.94i, 50.00p / 50.00i 480p 59.94p 576p 50p Uncompressed YCbCr 4:2:2, 8-bit or 10-bit, sound output via HDMI is also possible
• Focusing
  Dual Pixel CMOS AF with Eye/Face Detection and Animal Tracking AF, Movie Servo AF Manual Focus (Peaking and Focus Guide available)
• ISO
  Auto: 100-6400, H: 51200 Manual: 100-25600, H1: 51200

Other Features

• Custom Functions
  23 Custom Functions
• Metadata Tag
  User copyright information (can be set in camera) Image rating (0-5 stars) IPTC data (registered with EOS Utility) Image transfer with caption (Caption registered with EOS Utility)
• LCD Panel / Illumination
  Yes/Yes
• Water/Dust Resistance
  Yes ¹²
• Voice Memo
  Yes
• Intelligent Orientation Sensor
  Yes
• Playback Zoom
  1.5x - 10x in 15 steps
• Display Formats
  (1) Single image (2) Single image with information (2 levels) Basic - Shooting information (shutter speed, aperture, ISO and Image quality) Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information, IPTC information (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating) (8) Movie edit (9) RAW processing (10) Rating
• SlideShow
  Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating Playback time: 1/2/3/5/10 or 20 seconds Repeat: On/Off
• Histogram
  Brightness: Yes RGB: Yes
• Highlight Alert
  Yes
• Image Erase
  Single image, select range, Selected images, Folder, Card
• Image Erase Protection
  Erase protection of Single image, Folder or Card all found images (only during image search)
• Self Timer
  3 or 10 sec.
• Menu Categories
  (1) Shooting menu (2) AF Menu (3) Playback menu (4) Network (5) Setup menu (6) Custom Functions menu (7) My Menu
• Menu Languages
  29 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
• Firmware Update
  Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter)

Interface

• Computer
  SuperSpeed USB 3.1 Gen 2 USB C connector
• Wi-Fi
  Wireless LAN (IEEE802.11a/b/g/n/AC) (5Ghz /2.4 GHz) ¹³, with Bluetooth 4.2 support, Features supported - EOS Utility, Smartphone, Upload to image.canon, Wireless printing

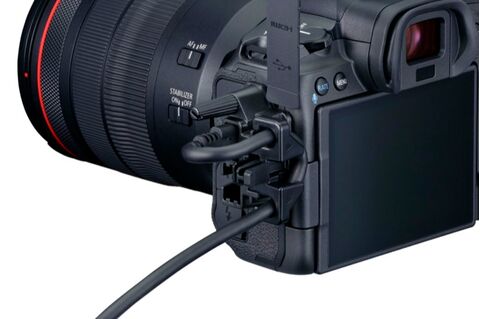

• Other
  HDMI micro out (Type D), External Microphone In/Line In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal) Flash sync socket

Direct Print

• PictBridge
  Not supported

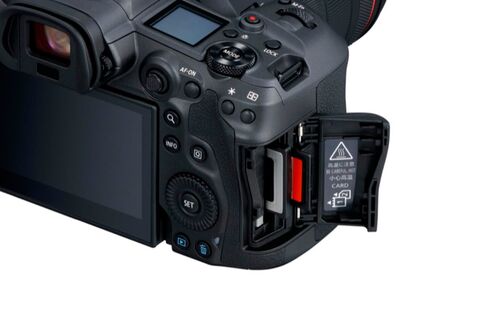

Storage

• Type
  1x CFexpress type B, 1x SD/SDHC/SDXC and UHS-II

Supported Operating System

• PC
  Windows 8.1 and Windows 10 (tablet mode not supported)
• Macintosh
  OS X v10.12, 10.13, 10.14, 10.15

Software

• Image Processing
  Digital Photo Professional 4.12.4 or later, Digital Photo Professional Express mobile app ( iPad only ) (RAW Image Processing)
• Other
  EOS Utility 3.12.3 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera Connect app, Mobile File Transfer app and image.canon app (iOS/Android)

Power Source

• Batteries
  Rechargeable Li-ion Battery LP-E6NH (supplied)/LP-E6N
• Battery Life
  With LCD Approx. 490 shots (at 23°C) With LCD Approx. 470 (at 0°C) With Viewfinder Approx. 320 shots (at 23°C) ¹⁴ With Viewfinder Approx. 310 (at 0°C)
• Battery Indicator
  6 levels + percentage
• Power Saving
  Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins
• Power Supply & Battery Chargers
  Battery charger LC-E6E (supplied), AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6, PD-E1 USB power adapter

Accessories

• Wireless File Transmitter
  Wireless File Transmitter WFT-E10B
• Lenses
  All RF lenses (EF & EF-S via Lens adapters)
• Lens Adapters
  Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R Drop-In Filter Mount Adapter EF-EOS R
• Flash
  Canon Speedlite (EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III-RT, 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
• Remote Controller / Switch
  Remote control with N3 type socket, Wireless Remote Control BR-E1, Infrared Remote RC-6 and Speedlite 600EX-II-RT
• Other
  BG-R10 battery grip, GP-E2 GPS receiver (digital compass not supported), Stereo Microphone DM-E1 / DM-E100

Physical Specifications

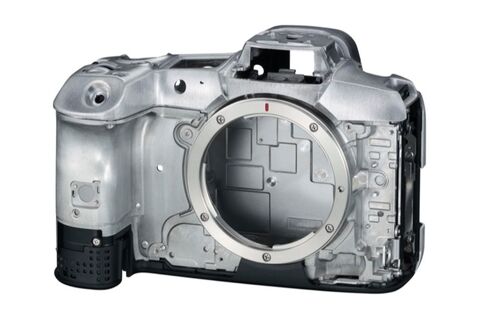

• Body Materials
  Magnesium Alloy body and Chassis with some components consisting of polycarbonate with glass fibre
• Operating Environment
  1 – 40 °C, 85% or less humidity
• Dimensions (W x H x D)
  135.8 x 97.5 x 88mm
• Weight (Body Only)
  Approx. 650 g (738 g with card and battery)
