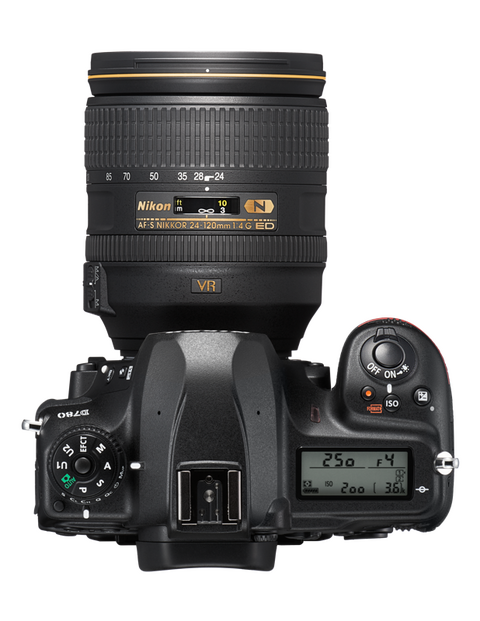

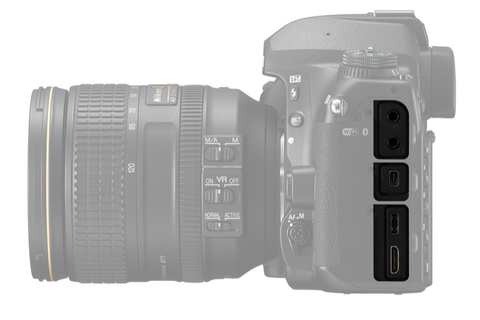

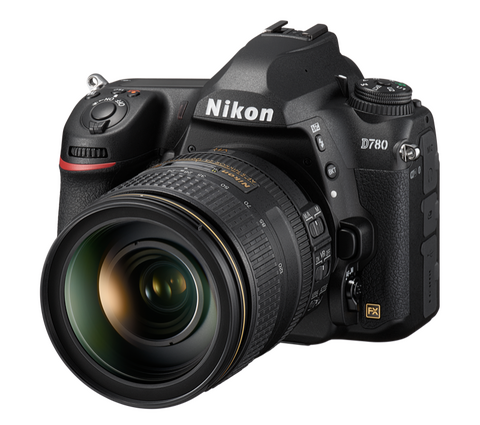

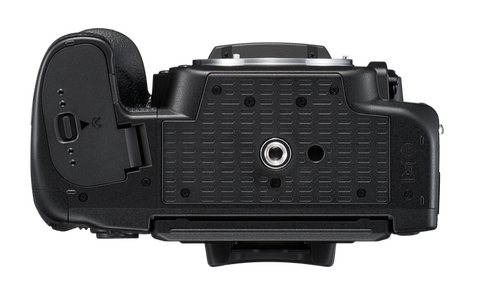

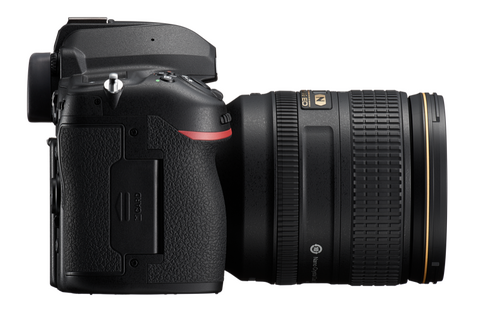

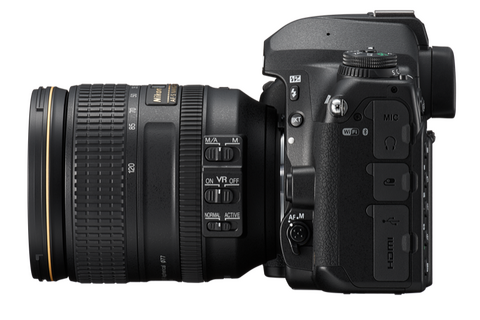

Nikon D780

Type

Single-lens reflex digital camera

Lens mount

Nikon F mount (with AF coupling and AF contacts)

Effective angle of view

Nikon FX format

Image sensor

FX, CMOS, 35.9 mm x 23.9 mm

Total pixels

25.28 million

Dust-reduction system

Image sensor cleaning, Image Dust Off reference data (Capture NX-D software required)

Effective pixels

24.5 million

Image size (pixels)

FX (36x24) image area: (L)6048, x4024 (24.3million), (M)4528, x3016 (13.7million), (S)3024, x2016 (6.1million). DX (24x16) image area: (L)3936, x2624 (10.3million), (M)2944, x1968 (5.8million), (S)1968, x1312 (2.6million). 1:1 (24x24) image area: (L)4016, x4016 (16.1million), (M)3008, x3008 (9.0million), (S)2000, x2000 (4.0million). 16:9 (36x20) image area: (L)6048, x3400 (20.6million), (M)4528, x2544 (11.5million), (S)3024, x1696 (5.1million). Photographs taken while filming movies at a frame size of 3840 x 2160: 3840 x 2160 Photographs taken while filming movies at other frame sizes: 1920 x 1080

Storage file formats

NEF (RAW): 12 or 14 bit (lossless compressed or compressed), JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression; size-priority and optimal-quality compression available, NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

Picture Control System

Auto, Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat, Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon); selected Picture Control can be modified; storage for custom Picture Controls

Storage media

SD, SDHC (UHS-II compliant), SDXC (UHS-II compliant)

Dual card slot

2 Secure Digital (SD) cards; the card in Slot 2 can be used for overflow or backup storage or for separate storage of NEF (RAW) and JPEG images; pictures can be copied between cards.

File system

DCF 2.0, Exif 2.31

Viewfinder

Eye-level pentaprism single-lens reflex viewfinder

Frame coverage

FX: Approx. 100% horizontal and 100% vertical, DX: Approx. 97% horizontal and 97% vertical, 1:1: Approx. 97% horizontal and 100% vertical, 16:9: Approx. 100% horizontal and 97% vertical

Magnification

Approx. 0.7x (50 mm f/1.4 lens at infinity, -1.0 m-¹)

Eyepoint

21 mm (-1.0 m-¹; from center surface of viewfinder eyepiece lens)

Diopter adjustment

-3 to +1 m-¹

Focusing screen

Type B BriteView Clear Matte Mark VIII screen (with AF-area brackets; framing grid can be displayed)

Reflex mirror

Quick return

Depth-of-field preview

Yes, pressing Pv button stops lens aperture down to value selected by user (A and M modes) or by camera (P and S modes)

Lens aperture

Instant return, electronically controlled

Compatible lenses

Types G, E, and D (some restrictions apply to PC lenses), other AF NIKKOR lenses (excluding IX NIKKOR lenses and lenses for the F3AF), AI-P NIKKOR lenses DX lenses (using [DX (24 × 16)] image area), non-CPU AI lenses (modes A and M only), during viewfinder photography, the electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster. With lenses that have a maximum aperture of f/8 or faster, the electronic rangefinder supports 11 focus points.

Shutter type

Electronically-controlled vertical-travel focal-plane mechanical shutter; electronic front-curtain shutter; electronic shutter

Shutter speed

1/8000 to 30 s (choose from step sizes of 1/3 and 1/2 EV, extendable to 900 s in mode M); Bulb; Time; X200

Flash sync speed

X=1/200 s; synchronizes with shutter at 1/200 s or slower Auto FP high-speed sync supported

Release mode

S (single frame), CL (continuous low speed), CH (continuous high speed), Q (quiet shutter-release), QC (quiet continuous shutter-release), Self-timer, MUP (mirror up)

Frame advance rate

Up to 7 fps. CL: 1 to 6 fps (viewfinder photography); 1 to 3 fps (live view photography). CH: 7 fps; when shooting NEF/RAW pictures during silent photography, either 8 fps (bit depth 14 bits) or 12 fps (bit depth 12 bits) QC: 3 fps

Self-timer

2 s, 5 s, 10 s, 20 s; 1 to 9 exposures at intervals of 0.5, 1, 2, or 3 s

Exposure metering

Viewfinder photography: TTL exposure metering using RGB sensor with approximately 180K (180,000) pixels; Live view: TTL exposure metering performed by image sensor

Metering method

Matrix: 3D color matrix metering III (type G, E, and D lenses); color matrix metering III (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data Center-weighted: Weight of 75% given to 12 mm circle in center of frame; diameter of circle can be changed to 8, 15, or 20 mm, or weighting can be based on average of entire frame (non-CPU and AF-S Fisheye NIKKOR 8-15mm f/3.5-4.5E ED lenses use 12-mm circle); Spot: Meters circle approximately 4 mm in diameter (about 1.5% of frame) centered on selected focus point (on center focus point when non-CPU or AF-S Fisheye NIKKOR 8-15mm f/3.5-4.5E ED lens is used); Highlight-weighted: Available with type G, E, and D lenses

Metering range (ISO 100, f/1.4 lens, 20 °C/68 °F)

Matrix and center-weighted metering: -3 to +20 EV; Spot metering: 2 to 20 EV; Highlight-weighted metering: 0 to 20 EV

Exposure meter coupling

CPU, AI

Mode

Auto, P: programmed auto with flexible program, S: shutter-priority auto, A: aperture-priority auto, M: manual EFCT, Special effects modes: night vision; super vivid; pop; photo illustration; toy camera effect; miniature effect; selective color; silhouette; high key; low key U1 and U2: user settings

Exposure compensation

–5 to +5EV; -3 to +3 EV when filming movies (choose from step sizes of 1/3 and 1/2 EV) available in P, S, A, M, and EFCT modes

Exposure lock

Luminosity locked at detected value

ISO sensitivity

ISO 100 to 51200 (choose from step sizes of 1/3 and 1/2 EV); can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100, or to approx. 0.3, 0.5, 0.7, 1, or 2 EV (ISO 204800 equivalent) above ISO 51200; auto ISO sensitivity control available (Recommended Exposure Index)

Active D-Lighting

Can be selected from Auto, Extra high, High, Normal, Low, or Off

Autofocus

Viewfinder photography: TTL phase detection performed using Advanced Multi-CAM 3500 II autofocus sensor module with support for 51 focus points (including 15 cross-type sensors; f/8 supported by 11 sensors); autofocus fine-tuning supported Live view: Hybrid phase-detection/contrast-detect AF performed by image sensor; autofocus fine-tuning supported

Detection range

Viewfinder photography¹: -3 to +19 EV; Live view²: -5 to +19 EV; -7 to +19 EV with low-light AF

Lens servo

Single-servo AF (AF-S), Continuous-servo AF (AF-C), AF mode auto-switch (AF-A, still photography only), full-time AF (AF-F, movie recording only); predictive focus tracking activated automatically according to subject status, Manual focus (M): Electronic rangefinder can be used

Focus points

Viewfinder photography: 51 points with [All points] selected for Custom Setting a6 [Focus points used], 11 points with [Every other point] selected, Live view³: 273 points with [All points] selected for Custom Setting a6 [Focus points used], 77 points with [Every other point] selected

AF-area mode

Viewfinder photography: Single-point AF, 9-, 21-, or 51- point dynamic-area AF, 3D-tracking, group-area AF, auto-area AF Live view: Pinpoint AF (still photography only, single-servo AF/AF-S), single-point AF, dynamic-area AF (still photography only, continuous-servo AF/AF-C), wide-area AF (S), wide-area AF (L), auto-area AF

Focus lock

Focus can be locked by pressing shutter-release button halfway (single-servo AF/AF-S) or by pressing AE-L/AF-L button

Built-in flash

Viewfinder photography: TTL flash control performed by RGB sensor with approximately 180K (180,000) pixels; Live view photography: TTL flash control performed by image sensor i-TTL balanced fill flash for digital SLR available with matrix, center-weighted, and highlight-weighted metering; standard i-TTL fill-flash for digital SLR available with spot metering

Flash modes

Front-curtain sync, red-eye reduction, slow sync, red-eye reduction with slow sync, rear-curtain sync, off

Flash compensation

–3 to +1 EV (choose from step sizes of 1/3 and 1/2 EV) available in P, S, A, and M modes

Flash-ready indicator

Lights when optional flash unit is fully charged; flashes after flash is fired at full output

Accessory shoe

ISO 518 hot-shoe with sync and data contacts and safety lock

Nikon Creative Lighting System

i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, auto FP high-speed sync, AF-assist for multi-area AF (viewfinder photography), unified flash control

Sync terminal

AS-15 sync terminal adapter (available separately)

White balance

Auto (3 types), natural light auto, direct sunlight, cloudy, shade, incandescent, fluorescent (7 types), flash, choose color temperature (2500 K to 10,000 K), preset manual (up to 6 values can be stored, spot white balance measurement available during live view photography), all except choose color temperature with fine-tuning

White balance bracketing

Exposure and/or flash, white balance, and ADL

Live View - Modes

Photo live view, Movie live view

Movie - metering

TTL metering using camera image sensor

Movie - metering method

Matrix, center-weighted, or highlight-weighted

Movie - frame size (pixels) and frame rate

3840 x 2160 (4K UHD); 30p (progressive), 25p, 24p 1920 x 1080; 120p, 100p, 60p, 50p, 30p, 25p, 24p 1920 x 1080 (slow-motion); 30p x4, 25p x4, 24p x5⁴. Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively

Movie - file format

MOV, MP4

Movie - video compression

H.264/MPEG-4 Advanced Video Coding

Movie - audio recording format

Linear PCM, AAC

Movie - audio recording device

Built-in stereo or external microphone with attenuator option; sensitivity adjustable

Movie - ISO sensitivity

Manual selection (ISO 100 to 51200); choose from step sizes of 1/3 and 1/2 EV) with additional options available equivalent to approximately 0.3, 0.5, 0.7, 1, or 2 EV (ISO 204800 equivalent) above ISO 51200; auto ISO sensitivity control (ISO 100 to Hi 2) available with selectable upper limit

Movie - Other options

Time-lapse movie recording, electronic vibration reduction, time codes, logarithmic (N-Log) and HDR (HLG) movie output

Monitor

8-cm (3.2–in.), approx. 2359k-dot (XGA) tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, 11-level manual brightness adjustment, and color balance control

Playback

Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, playback zoom cropping, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, picture rating, auto image rotation, and index marking

USB

Type C connector (SuperSpeed USB); connection to built-in USB port is recommended

HDMI output

Type C HDMI connector

Audio input

Stereo mini-pin jack (3.5 mm diameter; plug-in power supported)

Audio output

Stereo mini-pin jack (3.5 mm diameter)

Accessory terminal(s)

Built-in (can be used with accessories such as the MC-DC2 remote cord)

Wi-Fi (Wireless LAN) standards

IEEE 802.11b/g/n/a/ac, 2412 to 2462 MHz (channel 11) and 5180 to 5320 MHz, 2.4 GHz band: 2.9 dBm, 5 GHz band: 8.7 dBm, Open system, WPA2-PSK

Bluetooth standards

Bluetooth Specification Version 4.2, Bluetooth: 2402 to 2480 MHz, Bluetooth Low Energy: 2402 to 2480 MHz, Bluetooth: –2.6 dBm, Bluetooth Low Energy: –4.1 dBm; Range: approximately 10 m (32 ft)⁵

Battery

One EN-EL15b rechargeable Li-ion battery⁶

AC adapter

EH-5d/EH-5c/EH-5b AC adapter; requires EP-5B power connector (available separately)

Tripod socket

1/4–in. (ISO 1222)

Dimensions (W x H x D)

Approx. 143.5 x 115.5 x 76 mm (5.7 x 4.6 x 3 in.)

Weight

Approx. 840 g (1 lb. 13.7 oz.), with battery and SD memory card but without body cap; approx. 755 g/1 lb. 10.7 oz. (camera body only)

Operating environment - temperature

0 °C to 40 °C (+32 °F to 104 °F)

Operating environment - humidity

85% or less (no condensation)

Supplied accessories

BF-1B Body Cap, DK-31 Rubber Eyecup (comes attached to camera), EN-EL15b Rechargeable Li-ion Battery with Terminal Cover, MH-25a Battery Charger (comes with either an AC wall adapter or power cable of a type and shape that varies with the country or region of sale), DK-5 Eyepiece Cap, UC-E24 USB Cable, AN-DC21 Strap
