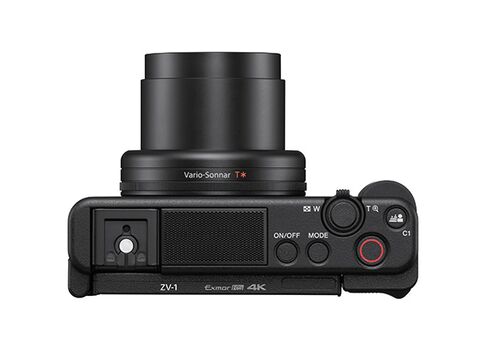

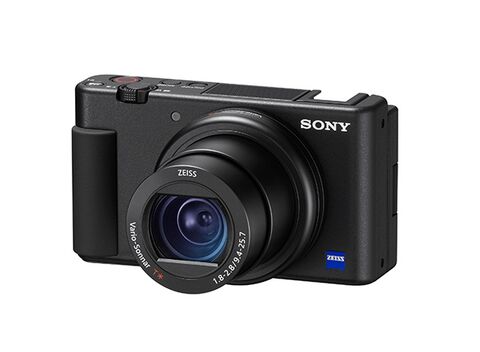

Sony ZV-1 Digital Camera (Vari-angle Screen for Vlogging, 4K Video)

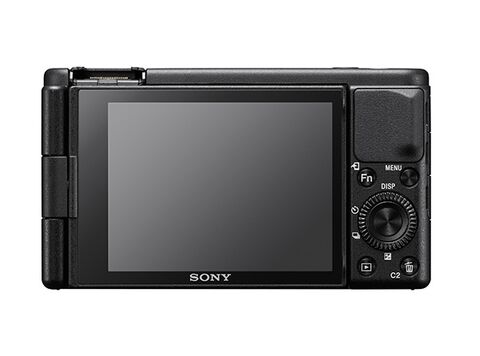

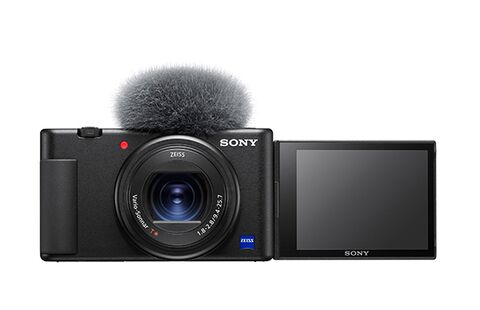

Vari-angle LCD screen, for selfie shooting with confidenceThe flip-out LCD screen lets you check your framing for vlogs and selfies without the view being restricted by accessories like microphones. The touch panel control makes intuitive adjustment of focus, shutter and other settings simple, even during selfie shooting.

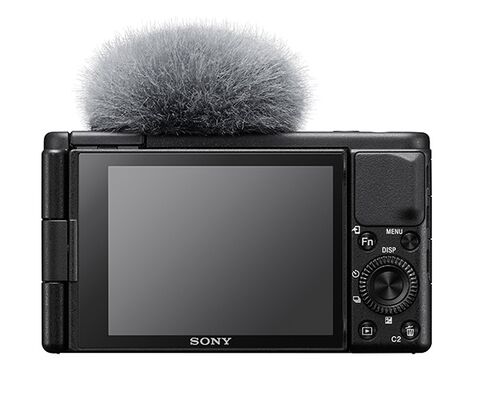

Directional 3-capsule mic and a bundled wind screen
Record your voice clearly, even in a crowd, with the built-in three capsule microphone. The unique design and structure uses spatial filtering to capture clear audio in front of the camera with fewer distracting ambient sounds. The included wind screen can also be attached to shoot outdoors, even in windy conditions, with confidence.

Optimised for easy and natural selfies
The ZV-1 is designed for quick and easy vlogging, with an ergonomic grip for stable selfie shooting, and a bright recording lamp so you’ll never forget to hit record again.

Beautiful and natural skin tones for everyone
Sony’s enhanced colour science ensures lively, natural imagery and is especially strong across the diverse range of skin tones. It is available for both movie and still image capture, and is supported with a Soft Skin option to smooth blemishes.

High image quality and easy advanced effects
Despite its pocket-friendly design, the ZV-1 is equipped with a large 1.0-type Exmor RSTM CMOS sensor, for high quality images even in dim or challenging lighting conditions. In addition, the large sensor delivers professional-looking images, with a blurred background bokeh, along with high-speed data readout for stunning 4K and super slow motion video capture.

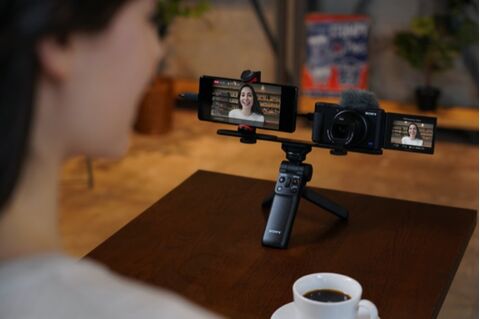

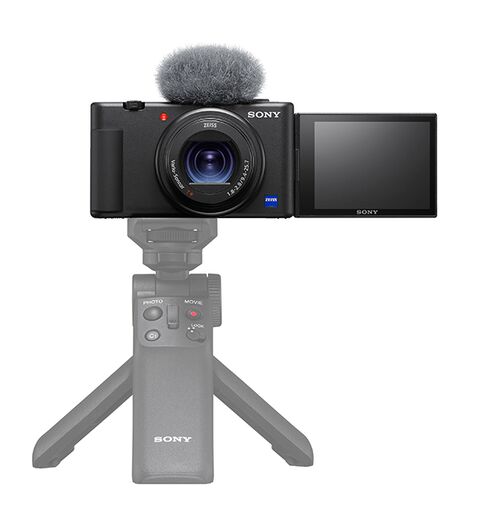

Compatible with all-in-one Bluetooth grips
The ZV-1 is compatible with our range of shooting grips, including the GP-VPT2BT with Bluetooth® wireless technology, for easy remote control of recording, zoom and even assignable custom controls, without cables. The ideal accessory for vlogging, our grips offer stable and flexible shooting, and also expand into a mini tripod for compact, handsfree capture anywhere.

Quickly shift focus between subjects
The high-performance focal plane phase-detection AF sensor enables high-speed and high-precision focusing with Fast Hybrid AF. The sensor uses 315 phase-detection focusing points across a full 65% of the screen area to quickly switch between subjects without hunting. When taking a selfie, the camera can switch focus with just a touch from your face to the background and back again, so sharp and accurate focus comes easy.

Beautiful defocused background bokeh, with ease
Capture expressive selfies with the professional look of a soft-focus background. The unique Bokeh Switch (C1 button) bypasses all the complexity of exposure balancing and depth-of-field control, and replaces it with a single button. Simply press to switch between having everything in focus, or blurring the background to expertly feature your subject.

Leave the focusing work to the camera with Real-time Tracking
Just turn your face to the camera, and the camera will recognise colour, patterns (brightness), subject distance (depth) and face/eye information and automatically snap into precise focus tracking. In addition, when the camera recognises eyes, faces, or subjects, a frame is displayed on each target so you can make sure that the subject is in focus and shoot without worrying.

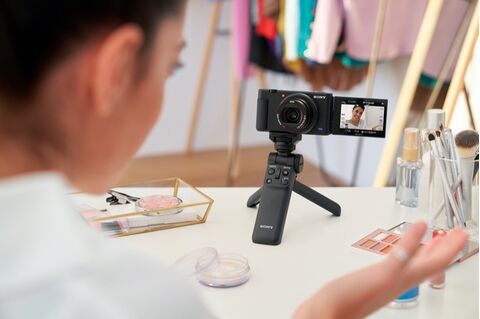

Make your reviews stand out with Product Showcase Setting
Take your product reviews to a new level of professionalism with the Product Showcase Setting, for fast and precise focus transitions from you to your featured product. The C2 custom button activates Product Showcase Setting by default, deprioritising your face for focusing and widening the field-of-view. Simply holding a product up in front of the camera will switch the focus point from your face, so there’s no more autofocus frustration and you can efficiently shoot video reviews with ease.

Smart auto-exposure (AE) transitions, optimised for faces
The kind of erratic, in-the-moment, shooting that makes for compelling vlogging also presents a huge challenge for most cameras. The ZV-1’s clever AE transition algorithm, however, makes rapid exposure adjustments even as lighting conditions change dramatically, through shadow and sunlight, indoors and out. And by prioritising faces, it ensures your video subjects always look their best, even when the lighting is far from ideal.

Powerful image stabilisation
Even while walking with the camera, you can get smooth, highly stable imagery thanks to the SteadyShot™ joint optical and electronic stabilisation system. It's specifically designed for handheld shots and vlogging with a shooting grip so you’ll enjoy the confidence of blur- and shake-free shots. Instead of holding still, you can concentrate fully on your presentation and framing.

Time-lapse adds cinematic expression to the passage of time
The ZV-1 features an interval shooting mode18 ideal for creating cinematic time-lapse movies with the aid of our Imaging EdgeTM Desktop PC software. The adjustable shooting interval (from 1–60 seconds) and full manual camera control allows spectacular shots of flowing clouds, streaming headlights and more, across up to 9,999 shots. Add a mobile battery, thanks to the convenient USB power input, and you can capture scenes worry-free for hours at a time.

High quality 20.1MP still image capture
Capture high-quality still images thanks to the 1.0-type Exmor RS CMOS sensor and ZEISS® 24-70mm19 lens. The large sensor and wide F1.8-2.8 aperture lens, along with the latest-generation BIONZ X™ processor, deliver professional-quality images—with exceptional performance even in low light, and stunning background bokeh for portraits.

Attach professional accessories with the MI Shoe
Our unique Multi Interface (MI) Shoe offers incredible flexibility to add lights, microphones and much more. Not only does it support standard cold-shoe accessories and flashes, but the interface also allows you to add high-performance audio adaptors such as the ECM-XYST1M stereo microphone, with power available direct from the camera.

Intuitive touch operation
The ZV-1’s touch screen makes selection of focus and tracking points, as well as other settings simple, even with the display flipped for selfies and vlogging—no more fumbling behind the camera for dials and navigation sticks.

Sony 2 Year Warranty



Key Features

  • 20.1MP 1" Exmor RS BSI CMOS Sensor Sony Vlog camera ZV-1
  • ZEISS 24-70mm-Equiv. f/1.8-2.8 Lens
  • UHD 4K30p Video with HLG & S-Log3 Gammas
  • 3.0" Side Flip-Out Touchscreen LCD

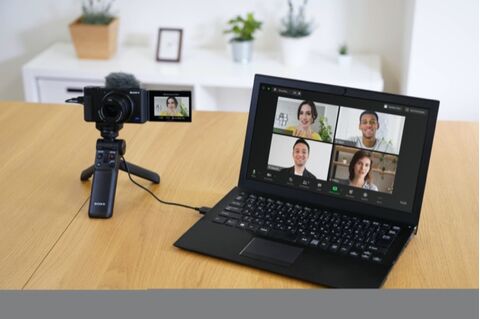

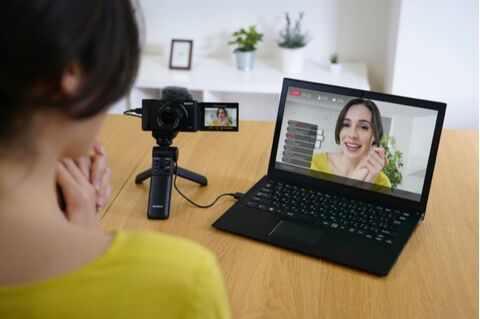

  • Live Stream - Imaging Edge Webcam for Livestreaming
Manufacturer:
Sony
Sony Vlog Camera ZV-1
Sony Vlog Camera ZV-1

The answer to your request will be sent to your email address.

Sensor
SENSOR TYPE
1.0-type (13.2mm x 8.8mm) Exmor RS CMOS sensor, aspect ratio 3:2
NUMBER OF PIXELS (EFFECTIVE)
Approx. 20.1 Megapixels
Lens
LENS TYPE
ZEISS Vario-Sonnar T* Lens, 10 elements in 9 groups (9 aspheric elements including AA lens)
F-NUMBER (MAXIMUM APERTURE)
F1.8 (W) - 2.8 (T)
ND FILTER
Auto / On (3 steps) / Off
FOCAL LENGTH
f=9.4-25.7mm
ANGLE OF VIEW (35MM FORMAT EQUIVALENT)
84 deg. - 34 deg.(24-70mm)1
FOCUS RANGE (FROM THE FRONT OF THE LENS)
AF (W: Approx. 5cm (0.17 ft.) to Infinity, T: Approx. 30cm (0.99 ft.) to Infinity)
OPTICAL ZOOM
2.7x
CLEAR IMAGE ZOOM (STILL IMAGE)
20M Approx. 5.8x / 10M Approx. 8.2x / 5.0M Approx. 11x / VGA Approx. 44x
CLEAR IMAGE ZOOM (MOVIE)
4K: 4.35x,HD: Approx. 5.8x
DIGITAL ZOOM (STILL IMAGE)
20M Approx.11x / 10M Approx.16x / 5.0M Approx.23x / VGA Approx.44x
DIGITAL ZOOM (MOVIE)
Digital Zoom Approx.11
LCD
SCREEN TYPE
7.5cm (3.0 type) (4:3) / 921,600 dots / Xtra Fine / TFT LCD
ADJUSTABLE ANGLE
Opening Angle:approx. 176 deg., Rotation Angle:approx. 270 deg.
DISPLAY SELECTOR (FINDER/LCD)
-
MF ASSIST MAGNIFICATION
5.3x, 10.7x
TOUCH PANEL
Yes
Camera
IMAGE PROCESSING ENGINE
Yes (BIONZ X)
STEADYSHOT (STILL IMAGE)
Optical
STEADYSHOT (MOVIE)
Yes (Optical type with electronic compensation, Anti Rolling type)
FOCUS TYPE
Fast Hybrid AF (phase-detection AF / contrast-detection AF)
FOCUS MODE
Single-shot AF, Automatic AF, Continuous AF, DMF, Manual Focus
FOCUS AREA
Wide (315 points (phase-detection AF), 425 points (contrast-detection AF)), Zone, Center, Flexible Spot (S/M/L), Expanded Flexible Spot, Tracking (Wide/Zone/Center/Flexible Spot(S/M/L)/Expanded Flexible Spot)
OBJECT TRACKING
Yes (Tracking)
EYE AF
[Still images] Human (Right/Left Eye Select) / Animal, [Movie] Human (Right/Left Eye Select)
LIGHT METERING MODE
Multi Pattern, Center Weighted, Spot, Entire Screen Avg, Highlight
EXPOSURE COMPENSATION
+/- 3.0EV, 1/3EV step
ISO SENSITIVITY (STILL IMAGE)(RECOMMENDED EXPOSURE INDEX)
Auto (ISO100-12800, selectable with upper / lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO64/80), Multi-Frame NR: Auto (ISO100-12800), 100/ 200/400/800/1600/3200/6400/12800/2560023
ISO SENSITIVITY (MOVIE)
Auto:(ISO125 Level-ISO12800 Level, selectable with upper / lower limit), 125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800
WHITE BALANCE MODES
Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Flash, Underwater Auto, C.Temp./Filter, Custom
WB MICRO ADJUSTMENT
Yes (G7 to M7,57-step) (A7 to B7,29-step)
SHUTTER SPEED
iAuto (4" - 1/2000) / Program Auto (30" - 1/2000) / Manual (Bulb, 30" - 1/2000) / Aperture Priority (30" - 1/2000) / Shutter Priority (30" - 1/2000)4
ELECTRONIC SHUTTER
iAuto (4" - 1/32000) / Program Auto (30" - 1/32000) / Manual (30" - 1/32000) / Aperture Priority (30" - 1/32000) / Shutter Priority (30" - 1/32000)
APERTURE
iAuto (F1.8/F11(W)) / Program Auto (F1.8/F11(W)) / Manual (F1.8/F11(W)) / Shutter Priority (F1.8/F11(W)) / Aperture Priority (F1.8/F11(W))
IMAGE CONTROL
Contrast, Saturation, Sharpness, Creative Style, Color Space (sRGB / Adobe RGB), Quality (RAW / RAW & JPEG (Extra fine, Fine, Standard) / JPEG (Extra fine, Fine, Standard)
NOISE REDUCTION
Long exposure NR: On/Off, available of shutter speeds longer than 1/3 sec., high ISO NR: Normal/Low/Off, Multi Frame NR: Auto, ISO100-25600
DYNAMIC RANGE FUNCTIONS
Off, Dynamic Range Optimizer (Auto/Level 1-5), Auto High Dynamic Range (Auto Exposure Difference, Exposure difference Level (1.0-6.0EV, 1.0EV step))
SHOOTING MODE
AUTO (Intelligent Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, MR (Memory Recall) [body 3 sets / memory card 4 sets], Movie Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Movie AUTO (Intelligent Auto), HFR Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Panorama, Scene Selection
SCENE SELECTION
Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti Motion Blur, Pet Mode, Gourmet, Fireworks, High Sensitivity
CONTINUOUS SHOOTING SPEED (MAXIMUM) (WITH MAX. RECORDING PIXELS)
Continuous Shooting Hi: approx. 24 fps, Continuous Shooting Mid: approx. 10 fps, Continuous Shooting Low: approx. 3.0 fps567
SELF-TIMER
10sec. / 5sec. / 2sec. / 3 or 5 consecutive shots with 10sec. 5sec. or 2sec. delay selectable / Bracketing shots with 10sec. 5sec. or 2sec. delay selectable
DRIVE MODES
Single, Continuous shooting, Self-timer, Self-timer(cont.), Cont.-bracketing8, Single-bracketing8, White balance bracketing8, DRO bracketing8
INTERVAL REC
Yes (1-60 sec. interval, 1-9999 shots, AE lock/AE tracking (High/Mid/Low))9
PANORAMA (SHOOTING)
Sweep Panorama
PICTURE EFFECT
[Still Image]: Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono., Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolor, Illustration, [Movie]: Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono.
CREATIVE STYLE
Standard, Vivid, Portrait, Landscape, Night Scene, Black & White, Sepia
PICTURE PROFILE
off/PP1-PP10 (Black Level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
NUMBER OF RECOGNISED SCENES
Still Image: iAuto: 33, Movie: off/PP1-PP10 (Black Level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
Flash
FLASH MODE
Auto / Flash On / Slow Synchro / Rear Sync / Flash Off
FLASH TYPE
-
AF ILLUMINATOR
-
BRACKETING
-
Recording
COMPATIBLE RECORDING MEDIA
[XAVC S (100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S (60Mbps/50Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [AVCHD/Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro10, Memory Stick Micro(Mark2)10, SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)1011
RECORDING FORMAT
[Still Image]: JPEG (DCF Ver.2.0, Exif Ver.2.31, MPF Baseline compliant), RAW (Sony ARW 2.3 format), [Movie]: XAVC S, AVCHD format Ver.2.0 compatible
RECORDING FORMAT (MOVIE AUDIO)
XAVC S: LPCM 2ch, AVCHD: Dolby Digital (AC-3) 2ch (Dolby Digital Stereo Creator)
COLOUR SPACE (STILL)
sRGB, Adobe RGB
DCF/DPOF
DCF/DPOF/EXIF/MPF
STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE)
3:2 mode: 20M (5,472×3,648) / 10M (3,888×2,592) / 5M (2,736×1,824), 4:3 mode: 18M (4,864×3,648) / 10M (3,648×2,736) / 5M (2,592×1,944) / VGA, 16:9 mode: 17M (5,472×3,080) / 7.5M (3,648×2,056) / 4.2M (2,720×1,528), 1:1 mode: 13M (3,648×3,648) / 6.5M (2,544×2,544) / 3.7M (1,920×1,920), Sweep Panorama: Wide (12,416×1,856/5,536×2,160), Standard (8,192×1,856/3,872×2,160)
MOVIE RECORDING MODE (NTSC)
NTSC/PAL Selector: [NTSC] AVCHD: 24M FX (1,920x1,080/60i) / 17M FH(1,920x1,080/60i), XAVC S 4K: 30p 100M (3,840x2,160/30p) / 30p 60M (3,840x2,160/30p) / 24p 100M (3,840x2,160/24p) / 24p 60M (3,840x2,160/24p), XAV C S HD:60p 50M (1,920x1,080/60p) / 60p 25M (1,920x1,080/60p) / 30p 50M (1,920x1,080/30p) / 30p 16M (1,920x1,080/30p) / 24p 50M (1,920x1,080/24p) / 120p 100M (1,920x1,080/120p) / 120p 60M (1,920x1,080/120p)
MOVIE RECORDING MODE (PAL)
NTSC/PAL Selector: [PAL] mode AVCHD: 24M FX (1,920x1,080/50i) / 17M FH (1,920x1,080/50i), XAVC S 4K: 25p 100M (3,840x2,160/25p) / 25p 60M (3,840x2,160/25p), XAVC S HD: 50p 50M (1,920x1,080/50p) / 50p 25M (1,920x1,080/50p) / 25p 50M (1,920x1,080/25p) / 25p 16M (1,920x1,080/25p) / 100p 100M (1,920x1,080/100p) / 100p 60M (1,920x1,080/100p)
HFR
Recording: NTSC/PAL Selector: [PAL] mode XAVC S HD: 50p 50M (1,920x1,080/250fps), 50p 50M (1,920x1,080/500fps), 50p 50M (1,920x1,080/1000fps) / 25p 50M (1,920x1,080/250fps), 25p 50M (1,920x1,080/500fps), 25p 50M (1,920x1,080/1000fps), NTSC/PAL Selector: [NTSC] mode XAVC S HD: 60p 50M (1,920x1,080/240fps), 60p 50M (1,920x1,080/480fps), 60p 50M (1,920x1,080/960fps) / 30p 50M (1,920x1,080/240fps), 30p 50M (1,920x1,080/480fps), 30p 50M (1,920x1,080/960fps) / 24p 50M (1,920x1,080/240fps), 24p 50M (1,920x1,080/480fps), 24p 50M (1,920x1,080/960fps) Sensor Readout Number of effective pixels: Quality Priority: 240fps/250fps (1,824x1,026), 480fps/500fps (1,824x616), 960fps/1000fps (1,244x420)/ Shoot Time Priority: 240fps/250fps (1,824x616), 480fps/500fps (1,292x436), 960fps/1000fps (912x308)
STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE) DURING MOVIE
16:9 mode: 17M (5,472×3,080) / 7.5M (3,648×2,056) / 4.2M (2,720×1,528)
PROXY RECORDING
Yes (1280 x 720 (Approx. 9Mbps))
Interface
INPUT AND OUTPUT TERMINALS

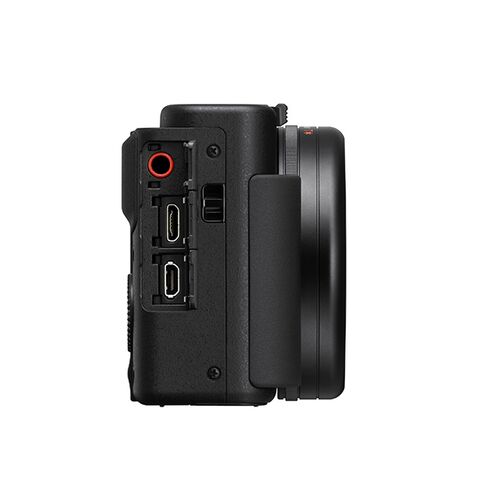

Multi/Micro USB Terminal*15, Hi-Speed USB (USB2.0), Micro HDMI, Microphone jack (3.5mm Stereo mini jack), Multi Interface Shoe
NFC
-
WI-FI
Yes (IEEE802.11b/g/n (2.4GHz band))
INTERFACES
-
BLUETOOTH
Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band))
Power
POWER SOURCE
DC3.6V (supplied battery)
BATTERY SYSTEM
Rechargeable battery pack NP-BX1
POWER CONSUMPTION (CAMERA MODE)
Approx. 2.1W with LCD monitor (CIPA standard)
USB CHARGE/USB POWER SUPPLY
Yes (Shooting, Playback)
BATTERY LIFE(STILL IMAGES)(CIPA)
Monitor: Approx. 260 / Approx. 130min., Monitor (When Auto Monitor off is set to 2sec): Approx. 410 / Approx. 205min.12
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA)
Monitor: Approx. 45min.131415
BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA)
Monitor: Approx. 75min.1314
Others
PLAYBACK MODES
-
SHOOTING FUNCTIONS
Product Showcase Set, Background Defocus, Face Detection, Face Registration, Still Image Recording (during movie recording), Smile shutter, Grid Line, Digital Level Gauge (pitch and roll), WB Bracket, DRO Bracketing, MF Assist, Peaking (Display:Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White), Zebra, Marker Display, Audio Rec Level, Audio Level Display, Step Zoom/Quick Zoom, Self-portrait timer, TC/UB, PC Remote Control, Gamma Disp. Assist, [Mov] AF Tracking Sensitivity, [Mov] AF Drive Speed, Set File Name, Touch Shutter/Touch Focus/Touch Tracking, My Menu, Soft Skin Effect
PLAYBACK FUNCTIONS
BRAVIA Sync (Control for HDMI), 9/25-frame index view, Auto Orientation, Slide Show, Forward/Rewind (Movie), Delete, Protect, Motion Shot Video, Beatuty Effect, Photo Capture, Rating, Automatic Image Rotation
TRILUMINOS COLOR
Yes16
4K IMAGE OUTPUT
Yes
OPERATING TEMPERATURE
0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F.
Print
PRINT
Exif Print,PRINT Image Matching (PIM3)
Size & Weight
DIMENSIONS (W X H X D) (APPROX.)
105.5 x 60.0 x 43.5 mm (4 1/4in. × 2 3/8 in. × 1 3/4 in.)
WEIGHT (CIPA COMPLIANT)
Approx. 294g (10.4oz.)(Battery and Memory Card are included) / Approx. 267g (9.5oz.)(Body Only)
What's In The Box
Rechargeable Battery Pack (NP-BX1), Micro USB cable, Wind Screen, Wind Screen Adaptor, Instruction Manual
